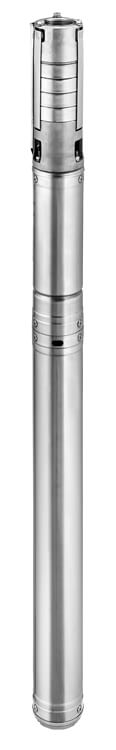

Speck SUPS 3-3-45 Submersible pump 518.1303.456
This product is no longer available.
Delivery rate series: Q up to max. 7.0 m³/h | Delivery head series: H up to max. 88 mWs | Media temperature series: t up to max. 30 °C | Sand content: up to max. 150 g/m | Drive insulation class: B | Drive voltage: 1~ 230 V ± 10 %
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Bacon SUPS 3-3-45 submersible pump 518.1303.456
Partnumber :518.1303.456
|
Bacon submersible pump 518.1303.456 SUPS 3-3-45
|
The submersible pumps of the SUPS series are characterized by high efficiency and a long service life. The components that come into contact with the medium are made of corrosion-resistant stainless steel. A wide range of accessories is available.
Application
Water supply, sprinkling, irrigation, rainwater harvesting, groundwater lowering
|
Tech. Details
Technical details |
||
Flow rate series | Q up to max. 7.0 m³/h | |
Head of series |
H up to max. 88 mWs | |
Media temperature series |
t up to max. 30 °C | |
Sand share |
up to max. 150 g/m | |
Operating print series |
N/A | |
Funding medium |
Pure cold water | |
Drive Protection |
IP68 | |
Drive insulation class |
B | |
Drive Voltage |
1~ 230 V ± 10 % | |
Drive speed |
8200 rpm (at 140 Hz) | |
Drive frequency |
50 Hz | |
Type code |
SUPS 3-3-45 SUP: BACON underwater pump S: Stainless steel version 3: pump type 3" 3: Flow rate in m³/h 45: Head in mWs | |
Special versions |
N/A | |
Rated current (A)
3~ 400V |
N/A | |
Rated current (A)
3~ 230V |
8,2 | |
Rated current (A)
1~ 230V |
N/A | |
Weight approx. (kg) |
16 | |
Pipe connection |
1 ¼ | |
Power output P2 |
0.9 | |
Max Funding Height |
N/A | |
Max. Conveyor stream |
N/A | |
Material pump housing |
Stainless steel 1.4301 | |
Material wheels |
Stainless steel 1.4301 | |
Material shaft |
Stainless steel 1.4301 | |
Coupling material |
Stainless steel 1.4301 | |
Material split ring |
NBR | |
Material warehouse |
NBR | |
Material sieve |
Stainless steel 1.4301 | |
Lantern material |
N/A |
Execution
Underwater pump cpl. with AC motor 1~ 140 Hz, 8200 min-1 with frequency-controlled operation, including motor protection, non-return valve, underwater cable with Schuko plug. — integrated dry run protection — soft start — Protection against over and under voltage — maximum diameter 76 mm |
