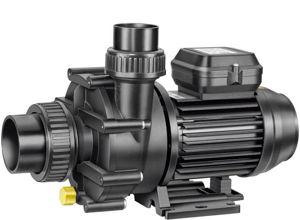

  3. Speck BADU 47/5 circulation pump 204.7050.038
Public Pricelist

Speck BADU 47/5 circulation pump 204.7050.038

    323.92 € 323.92 € 323.92 EUR

    323.92 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Max. delivery head (m): 10 | Max. Max. delivery flow (m³/h): 10.67 | Pump casing material: PP TV 40 | Current (A): 2.6 | Power consumption P1 (kW): 0.58 | Recommended suction/pressure line, PVC pipe: 50/50

    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Bacon BADU 47/5 circulation pump 204.7050.038


    Part number :204.7050.038

    Bacon self-priming circulation pump 204.7050.038 BADU 47/5

    Connection variant of the medium-sized BADU 46 jet pump. For whirlpools, whirlpools and spa facilities.

    Application


    The BADU 47 series has a flow rate of 6 to 23 m³/h 8 m the ideal pump for whirlpool tubs, whirlpools and is for the Suitable for spa use.

    Tech. Details

    Technical details
    Suspense 1~230 V
    Power (A)
    		 2.6
    Power consumption P1 (kW)
    		 0.58
    Power output P2 (kW)
    		 0.3
    Rec. Suction/discharge line, PVC pipe
    		 50/50
    Suck Sa/Print Da
    		63/50
    Max head (m)
    		 10
    Max. Flow rate (m³/h)
    		 10,67
    Material pump housing
    		 PP TV 40
    Material housing cover
    		 PP GF 15
    Material intermediate housing
    		 N/A
    Material seal housing
    		 N/A
    Material spiral insert
    		 N/A
    Material cover for seal housing
    		 N/A
    Material split ring
    		 N/A
    Material containment shell
    		 N/A
    Material intermediate flange
    		 N/A
    Material pump foot
    		 N/A
    Material vane set
    		 N/A
    Material housing cover
    		 N/A
    Material impeller
    		 PP GF 15
    Material impeller (version H)
    		N/A
    Material impeller nut
    		 N/A
    Material suction strainer
    		 N/A
    Material cover
    		 N/A
    Material clamping ring
    		 N/A
    Material adhesive sleeves
    		 ABS
    Mechanical seal material
    		 Charcoal/Ceramic/NBR
    Plain bearing material
    		 N/A
    Material screws
    		 Brass/stainless steel
    Material screw connections/adhesive sockets
    		 N/A
    Material lastomere
    		 NBR
    Motor shaft material
    		 N/A
    Weight (Kg)
    		 7

    Execution



    Close-coupled pump with bellows mechanical seal, mounted on a plastic impeller hub. The motor or pump shaft comes with the in the cycle not in contact with the water. electrical separation.
