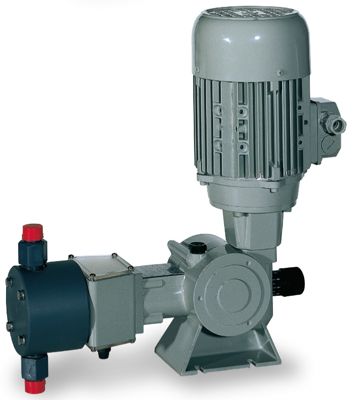

Doseuro Srl A-125N-11/I-13 DV Motor metering pump A0E0115013211AA00

    764.64 € 764.64 € 764.64 EUR

    648.00 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Pump type: piston | Max. Max. pressure in bar: 10 | Max. flow rate in l/h: 2.4 | Pump head: PVC | Piston: ceramic | Motor power: 0.18 kW | Supply voltage: 230/400V

    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
    The offer is exclusively for professionals.

    Doseuro Srl -E/P DOS. A-125N-11/I-13 DV - - 4/3PH-230/400/50/60- Metring dosing pump A0E0115013211AA00

    Product Number: A0E0115013211AA00

    Manufacturer's pump key: -E/P DOS. A-125N-11/I-13 DV - - 4/3PH-230/400/50/60-.

    Pump key nameplate: A-125N-11/I-13 DV

    All standard models are equipped with a reduction gear with a vertically mounted electric motor. The reduction gear consists of a worm gear lubricated in an oil bath and ball bearings. The stroke can be adjusted manually when the pump is stationary or in operation, or automatically via a 4-20mA signal controlled electric drive, various BUS signals or a pneumatic actuator. In addition, all dosing pumps are coated with a cathodic dip coating to increase corrosion resistance in offshore applications or with outgassing dosing media and to protect the housing against corrosion. Series A plunger metering pumps are used in the following cases: - The pumped liquid does not contain solids. - The system does not have to be 100% tight. - A particularly high pressure is required.


    No accessories

    Tech. Details

    Product information
    Product information.Product names.Metring dosing pump
    Product number
    Pump key
    -E/P DOS. A-125N-11/I-13 DV - - 4/3PH-230/400/50/60-
    Technical specifications
    Pump type Pistons
    Max. Pressure in bar 10
    Max flow rate in l/h. 2.4
    Adjustment range: 0 - 100 %
    Connection: 1/2" BSP male
    Environmental temperature. -20 °C to +40 °C.
    Pump head. PVC
    Pistons Ceramic.
    Piston seal. FPM
    Membrane -
    Valve ball. Pyrex
    Valve seat PVC
    Valve gasket. FPM
    Electrical data
    Engine performance. 0.18 kW
    Mains frequency 50 / 60 Hz
    Power supply voltage. 230/400V
    Gross/net weight. 8
    Country of origin. Italy
    Customs Tariff Number. 84135040

    Detail description

    Piston metering pumps with return spring

    Piston pumps are reliable and easy to maintain and can also be equipped with seal cleaning or leakage recovery (optional).

    In addition, they comply with the ATEX directives and can therefore be used in potentially explosive atmospheres (only on request).

    Wide range of materials for the delivery head: STAINLESS STEEL 316L; PVC; PP; PVDF; PTFE; other materials on request.
