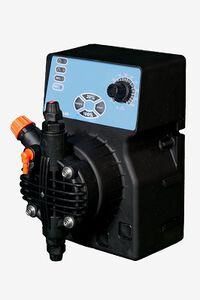

Etatron DLXB MA/AD 1504 PVDF solenoid metering pump PBX 23 231 5E 1504

  • Etatron seal

372.57 € 372.57 € 372.57 EUR

372.57 €

Option not available

Diese Kombination existiert nicht.

Add to cart

flow rate at max. pressure [l/h]: 15 | max. pressure [bar]: 04 | mL per stroke: 2.08 | power [W]: 58 | current [A]: 0.25 | CP: N/A | std. power supply: 230V, 50-60 Hz


In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

The offer is exclusively for professionals.

Etatron PTFE diaphragm solenoid metering pump DLXB MA/AD 1504


partnumber: PBX 23 231 5E 1504


Etatron DLXB MA/AD 1504 PVDF solenoid metering pump PBX 23 231 5E 1504

The DLX pump series is a proven PTFE diaphragm solenoid metering pump that features a wide range of control options. Since its market launch, the DLX pump series has proven its reliability and quality. It is used in many chemical metering applications where moderate flow is required at back pressures up to 20 bar (290 PSI).

Properties:



Anlaoge diaphragm metering pump


Operating mode: Manuel 0-20% - 0-100%

Accessories


Installation set: PVDF injection valve, PVDF foot filter, PVC suction hose and PE pressure hose

Tech. Details

Product Information
Product information.Type.Magent diaphragm metering pump.
Product number
PBX 23 231 5E 1504
Product name
.
DLXB MA/AD 1504
Material dosing head
PVDF
Electrical data
Electrical power W. 58
Voltage supply V 230V, 50-60 Hz
Current supply [A] 0.25
Net frequency Hz 50-60 Hz
Protection class. IP65
Type of cable plug. EU
Dosing data
Dosing capacity Max. [l/h] 15
Dispensing pressure Max. [bar] 04
Suction height suction phase [m] 2
Stroke volume per imp [ml] 2.08
Stroke frequency [imp/min] 120
Controls
Operating modes Manuel 0-20% - 0-100%
Enter Level Sensor
Output N/A
Alarm. N/A
Display. N/A
Material Material dosing head PVDF
Material gasket. FPM (Viton) or EPDM (Dutral)
Valve ball material. Ceramics
Membrane material PTFE
Dosing medium Viscosity [mPas] 400
Density kg/m³ 1
Construction Pump type. Magent diaphragm metering pump.
Ventilation [Manual, Automatic] Manuel,(Automatic on request)
Valve type [bullet] Ball valve.
Hose connection: N/A

Variants

Type max. flow CP Standard max. print max. pulses/minute mL per hub std. sp. supply Power (W) Current (A) Weight (kg)
0115 1 E 15 120 0.14 230V/50-60 HZ 37 0.16 2.3
2 10
3 5
0220 2 C 20 0.28 58 0.25 2.9
0507 5 E 7 0.69 37 0.16 2.3
6 5
8 2
0810 8 A 10 1.11 58 0.25 2.9
10 7
12 3
1504 15 E 4 2.08
2003 20 B 3 2.6

Downloads



Data sheet



Operating instructions
