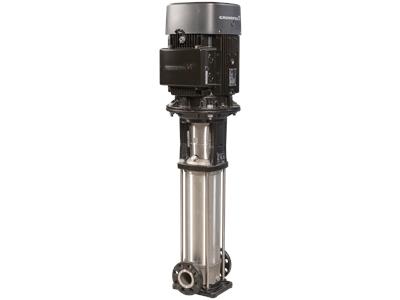

Grundfos CRI 1-36 A-FGJ-A-V-HQQV Vertical centrifugal pump 96560210

    4,955.83 € 4,955.83 € 4955.83 EUR

    4,955.83 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Nominal volumetric flow (m³/h): 1.8 | Nominal head (m): 172.2 | Media temperature range (°C): -20 .. 90 | Minimum efficiency index, MEI ≥: 0.7 | Rated motor power P2 (kW): 2.2 | Impeller material: EN 1.4301


    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos 96560210 Vertical centrifugal pump CRI 1-36 A-FGJ-A-V-HQQV

    Product number: 96560210

    EAN Number: 5700399313785


    Vertical multistage centrifugal pump with opposite suction and discharge connections. All wetted parts made of stainless steel 1.4301.

    Accessories


    No installation kit

    Tech. Details

    Product information
    Product informationType.Vertical centrifugal pump.
    Product number
    96560210
    Product name
    CRI 1-36 A-FGJ-A-V-HQQV
    EAN number
    5700399313785
    Electrical data
    Motor rated power P2 (kW) 2.2
    Net frequency (Hz) 50
    Power factor Cos phi 0.86-0.80
    Nominal speed (1/min) 2890-2910
    Efficiency (%) IE3 85.9%
    Protection class (according to IEC 34-5) 55 Dust/Jetting
    Heat class (IEC 85) F
    Motor efficiency at 3/4 load (%) 0.882
    Motor efficiency at half load (%) 0.88
    Motor pole 2
    Installation
    Maximum ambient temperature (°C) 60
    Max. Pressure at given temperature (bar_°C) 25 / 90
    Media temperature range (°C) -20 ... 90
    Maximum media temperature during operation (°C) 20
    Size of motor flange. FT115
    Size of the suction port. DN 25/32
    Print port size. DN 25/32
    Technical data
    Pump speed (1/min) 2899
    Nominal flow rate (m³/h) 1.8
    Nominal head (m) 172.2
    Max. head (m) 224.5
    GLRD code. HQQV
    Tariff No.
    CE,EAC,UKCA,SEPRO
    Max. Operating pressure (bar) 25
    Pump alignment. Vertical
    Nominal pressure stage PN 25
    Cooling K.A.
    Materials Pump housing. K.A.
    Impeller material
    EN 1.4301
    Impeller material according to ASTM
    AISI 304
    Storage
    SIC
    Others Minimum Efficiency Index, MEI ≥. 0.7
    Net weight (kg)
    49
    Country of origin
    HU
    Tariff No.
    84137075
    Shipping vol. (m³)
    0.148
    Sales region
    K.A.
    Norwegian NRF No.
    K.A.
