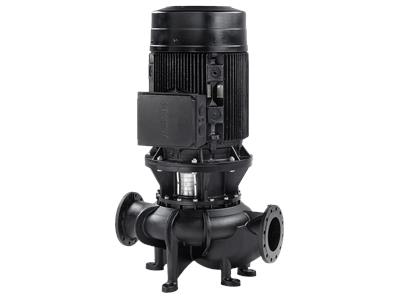

Grundfos TP 150-450/4 A3-F-O-DAQF-TX3 Single-stage in-line pumps 98736600
Nominal flow rate: 290 m³/h | Nominal head: 41 m | Ambient temperature: -20 ... 55 °C | Max. Operating pressure: 25 bar | Rated current: 80/46.5 A
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 98736600 Single stage inline pumps with variable speed MGE motor TP 150-450/4 A3-F-O-DAQF-TX3
Product Number: 98736600
EAN Number: 5712600706934
Single-stage spiral pump with opposite suction and discharge nozzles in inline design. The suction and discharge ports have the same diameter. The pumps are designed according to the top pull-out principle, i.e. the pump head (motor, head piece and impeller) can be easily removed for maintenance or servicing, while the pump casing remains in the piping. The pump is equipped with a balanced O-ring seal. The mechanical seal complies with EN 12756. piping connection via DIN flanges PN 25 according to EN 1092-2 and ISO 7005-2. the pump is equipped with a fan-cooled asynchronous motor.
Accessories
No installation kit |
Tech. Details
| Product information | ||
| Product Information | Type | Single-stage inline pumps |
| Product number |
98736600 | |
| Product Name |
TP 150-450/4 A3-F-O-DAQF-TX3 | |
| EAN number |
98736600 | |
| Electrical data |
Motor type | SIEMENS |
| IE-efficiency class | IE3 | |
| Engine rated power P2 | 45 kW | |
| Net frequency | 50 Hz | |
| Dimensioning voltage | 3 x 380-420D/660-725Y V | |
| rated current | 80/46.5 A | |
| Startup current | 660-660 % | |
| Power Factor Cos phi | 0.86 | |
| Nominal speed | 1478 1/min | |
| Efficiency | IE3 94.2% | |
| Motor efficiency at full load | 94.2-94.2% | |
| Motor efficiency at 3/4 load | 94.9-94.9 % | |
| Efficiency of the motor at half load | 95-95% | |
| Motorpole | 4 | |
| Protection class (according to IEC 34-5) | IP55 | |
| Heat class (IEC 85) | F | |
| Built-in engine protection | PTC | |
| Installation |
Environmental temperature | -20 ... 55 °C |
| Max. Operating pressure | 25 bar | |
| Max. Pressure at given temperature | 25 bar / 140 °C | |
| connection type | DIN | |
| Port size | DN 150 | |
| Nominal pressure level | PN 25 | |
| Port-to-port length | 1000 mm | |
| Size engine flange | FF400 | |
| Code connection type | F | |
| Technical data |
Pump speed on which the pump data is based | 1480 1/min |
| Nominal current | 290 m³/h | |
| Nominal head | 41 m | |
| Maximum head | 450 dm | |
| Actual impeller diameter | 358 mm | |
| GLRD Code | DAQF | |
| ISO acceptance class. | ISO9906:2012 3B | |
| Code execution | A3 | |
| Supported medium | Media temperature range | 0 ... 140 °C |
| Media temperature during operation | 20 °C | |
| Materials | Pump housing | Ductile cast iron |
| Pump shroud | EN-GJS-400-18-LT | |
| Impeller material | Grey cast iron | |
| Impeller | EN-GJL-200 | |
| Impeller material according to ASTM | ASTM class 30 | |
| Code Material | O | |
| Type of control. | VFD product number | K.A. |
| Frequency inverter | without | |
| Frequency converter type | K.A. | |
| Approval for frequency converter | K.A. | |
| Others | Minimum Efficiency Index MEI ≥ | 0.70 |
| Net weight | 664 kg | |
| Gross weight | 709 kg | |
| Shipping volume. | 1.64 m³ | |
| Confi. File# | K.A. | |
| Country of origin | HU | |
| Tariff No. | 84137051 | |
| Control panel | K.A. | |
| Functional Module | K.A. | |
| Danish VVS No. | 371748450 | |
| Fine LVI No. | K.A. | |
| Norwegian NRF No. | K.A. | |
| Swedish RSK No. | K.A. | |
