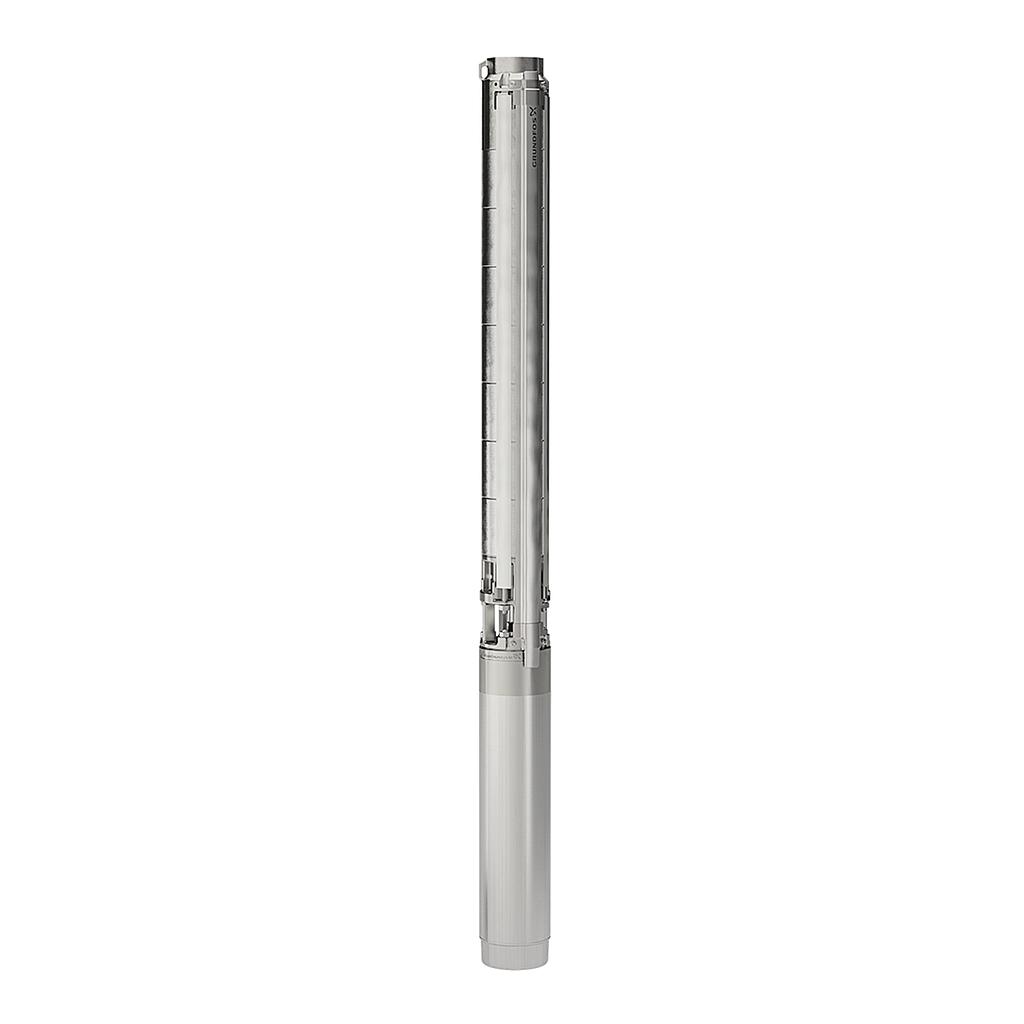

Grundfos SP 11-5 Submersible pump in stainless steel 98699093
Nominal flow rate: 11 m³/h | Rated flow rate: K.A. | Max. medium temperature: 60 °C Max. media temperature: 60 °C | Nominal head: 22.7 m | Pump speed on which the pump data are based: 2900 1/min
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 98699093 stainless steel submersible pump SP 11-5
Product Number: 98699093
Product ID: 5712600106697
Stainless steel submersible pumps for installation in 4", 6", 8" and 10" wells for pumping groundwater with motor powers from 0.37 to 250 kW. Submersible pump for pumping clean water. For vertical or horizontal installation, e.g. in wells. All steel parts made of corrosion resistant stainless steel 1.4301 (AISI 304). With drinking water approval.
Accessories
No installation set |
Tech. Details
| Product information | ||
| Product Information | Type | Stainless steel submersible pump |
| Product number |
98699093 | |
| Product Name |
SP 11-5 | |
| EAN number |
5712600106697 | |
| Electrical data |
Motor type | K.A. |
| Motor Usage | NEMA | |
| rated motor power P2 | K.A. | |
| Power requirement (P2) of the pump | 1.1 kW | |
| Net frequency | K.A. | |
| Dimensioning voltage | K.A. | |
| Dimensioned current | K.A. | |
| Startup current | K.A. | |
| Power Factor Cos phi | K.A. | |
| Nominal speed | K.A. | |
| Protection class (according to IEC 34-5) | K.A. | |
| Heat class (IEC 85) | K.A. | |
| Integrated motor protection | K.A. | |
| Temperature protection | K.A. | |
| Integrated temperature sensor | K.A. | |
| Motor - Product Number | K.A. | |
| Motor winding | K.A. | |
| Installation |
Pressure port connection | Rp2 |
| Motor diameter | 4 inches | |
| Technical data |
Pump speed on which pump data is based | 2900 1/min |
| Nominal flow | 11 m³/h | |
| Nominal head | 22.7 m | |
| Number of steps | 5 | |
| Impeller reduction number | NONE | |
| Wave sealing of the engine | SIC/SIC | |
| Test mark on the nameplate | CE,EAC | |
| Kennel tolerance | ISO9906:2012 3B | |
| model | A | |
| Backlash | YES | |
| engine version | T40 | |
| Supporting medium. | Max. Media temperature | 60 °C |
| Max. Media temp. at 0.15 m/s | K.A. | |
| Media temperature during operation | 20 °C | |
| density | 998.2 kg/m³ | |
| Materials | Pump | Stainless steel |
| Impeller material | stainless steel | |
| Impeller | EN 1.4301 | |
| Wheel material according to ASTM | AISI 304 | |
| Motor | stainless steel | |
| Others | Minimum Efficiency Index, MEI ≥ | 0.60 |
| Net weight | 7.4 kg | |
| Gross weight | 8.5 kg | |
| Shippingvol. | 0.011 m³ | |
| Country of origin | DK | |
| Tariff No. | 84137029 | |
| Danish VVS No. | K.A. | |
| Fine LVI No. | K.A. | |
| Swedish RSK No. | K.A. | |
| Norwegian NRF No. | K.A. | |
