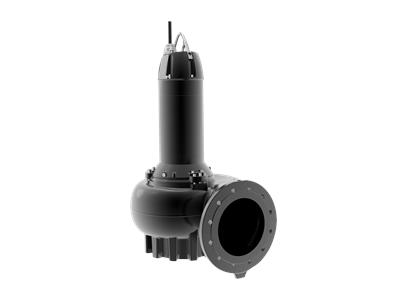

Grundfos SL.100.110.4.52H.S.Q.N.51D.A submersible pump 99769462
Maximum head: 23 m | Maximum flow rate: 111 l/s | Max. operating pressure: 8 bar | Rated speed: 1482 rpm Operating pressure: 8 bar | Rated current: 24-22/14-13 A | Rated speed: 1481 1/min
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 99769462 Submersible pump SL.100.110.4.52H.S.Q.N.51D.A
Product code: 99769462
EAN Number: 5713834009594
Submersible pumps and dry-installed Grundfos SE/SL wastewater pumps (9-30 kW) are either equipped with: S-tube® (SE/SE1/SE2 and SL/SL1/SL2) or SuperVortex impeller (SLV). The free passage through the pump varies from 35-125 mm depending on the size and impeller variant. Non-self-priming, single-stage submersible pump for pumping wastewater, service water and untreated raw sewage. The pump is designed for wet installation in intermittent or continuous operation. Open S-tube® impeller does not clog to pump compressible solids for smooth and reliable operation. Features SmartTrim system to adjust impeller clearance to maintain maximum performance over the life of the pump. Features Grundfos SmartSeal sealing system for a leak-free connection to a coupling foot bend.
Accessories
No installation set |
Tech. Details
| Product Information | ||
| Product Information | Type | Submersible pump |
| Product number |
99769462 | |
| Product Name |
SL.100.110.4.52H.S.Q.N.51D.A | |
| EAN number |
5713834009594 | |
| Electrical data |
Power consumption P1 | 12.7 kW |
| Motor rated power P2 | 11 kW | |
| Net frequency | 50 Hz | |
| Designated stress | 3 x 380-415/660-690 V | |
| Voltage tolerance | +10/-10 % | |
| Max starts per hour | 20 | |
| rated current | 24-22/14-13 A | |
| Maximum power consumption | 23 A | |
| Current at idle | 10.4 A | |
| Motor efficiency at full load | 0.86 | |
| Motor efficiency at 3/4 load | 0.86 | |
| Motor efficiency at half load | 0.84 | |
| Motorpole | 4 | |
| Switch-on type | Y/D | |
| Protection class (according to IEC 34-5) | IP68 | |
| Isolation class (IEC 85) | H | |
| Explosion-proof | no | |
| Cable length | 10 m | |
| Cable type | S1BN8-F | |
| Cable size | 7G4+5X1.5ST | |
| Resistance | 4.95 mOhm/m | |
| Winding resistance | 0.690 ohms | |
| Nominal current at 3/4 charge | K.A. | |
| Nominal current at 1/2 charge | K.A. | |
| Size of the operating capacitor | K.A. | |
| Heat class (IEC 85) | K.A. | |
| Installation |
ambient temperature | -20 ... 40 °C |
| Max. Working pressure | 8 bar | |
| Size of suction port | DN 150 | |
| Size of the pressure port | DN 100 | |
| Name print | PN 10 | |
| Maximum installation depth | 20 m | |
| Dry / wet setup | SUBMERGED | |
| Automatic clutch foot manifold | 96090994 | |
| Foot | 96102314 | |
| Size of construction | 52 | |
| Technical specifications |
Maximum flow rate | 111 l/s |
| Maximum head | 23 m | |
| Wheel type | OPEN S-TUBE | |
| Maximum particle size | K.A. | |
| Approvals | CE,EAC,RCM | |
| Designated speed | 1481 1/min | |
| Slip ring seal | K.A. | |
| Certification mark on the nameplate | K.A. | |
| characteristic tolerance | K.A. | |
| Cooling jacket | K.A. | |
| Cargo. | Media temperature range | 0 ... 40 °C |
| Materials | Pump housing | Grey cast iron |
| pump casing | EN-GJL-250 according to EN 1561 | |
| Impeller material | stainless steel | |
| Impeller | EN 1.4408 | |
| Impeller material according to ASTM | ASTM A351 CF8M | |
| engine | Grey cast iron | |
| Secondary shaft seal | SIC-CARBON | |
| Type of control | Moisture sensor | With humidity sensor |
| Control panel | K.A. | |
| Water-in-oil sensor | K.A. | |
| Others | Net weight | 306 kg |
| Gross weight | 334 kg | |
| Shipping vol. | 1.04 m³ | |
| Country of origin | HU | |
| Tariff No. | 84137021 | |
| Sales region | K.A. | |
| Fine LVI No. | K.A. | |
| Swedish RSK No. | K.A. | |
| Norwegian NRF No. | K.A. | |
