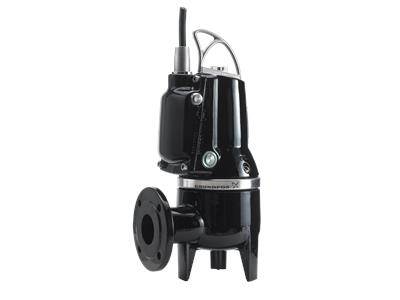

Grundfos SLV.65.65.09.E.2.1.502 waste water pump 96878474

    4,172.07 € 4,172.07 € 4172.07 EUR

    4,172.07 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Max. delivery head: 6.5 m | Max. flow rate: 10.3 l/s | Max. operating pressure: 6 bar | Rated speed: 2720 rpm Operating pressure: 6 bar | Rated current: 6.1 A | Rated speed: 2870 1/min


    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos 96878474 wastewater pump SLV.65.65.09.E.2.1.502

    Product Number: 96878474

    EAN Number: 5700312550754


    Sewage pumps (1.1 to 11 kW) with SuperVortex free-flow impeller. Depending on the size, the free passage is 50 to 100 mm. Non-self-priming, single-stage submersible pump for pumping wastewater, service water and untreated raw sewage. The pump is designed for wet installation in intermittent or continuous operation. With efficiency-optimized SuperVortex vortex impeller with a free ball passage of 65 mm. For wastewater with a dry matter content of up to 5 %. With service-friendly stainless steel clamping band for quick separation of motor and hydraulics. No special tools required. Pipe connection via flange DIN.

    Accessories


    No installation set

    Tech. Details

    Product information
    Product InformationTypeSewage pump
    Product number
    96878474
    Product Name
    SLV.65.65.09.E.2.1.502
    EAN number
    5700312550754
    Electrical data
    Power input P1 1.3 kW
    Motor rated power P2 0.9 kW
    Net frequency 50 Hz
    Dimensioning voltage 1 x 230 V
    Voltage tolerance +6/-10 %
    Max starts per hour 30
    rated current 6.1 A
    Maximum power consumption K.A.
    Current at idle 2.6 A
    Motor efficiency at full load 0.67
    Motor efficiency at 3/4 load 0.63
    Motor efficiency at half load 0.55
    Motorpole 2
    Switch-on type Direct
    Protection class (according to IEC 34-5) IP68
    Isolation class (IEC 85) K.A.
    Explosion-proof no
    Cable length 10 m
    Cable type 07RN8-F
    Cable size K.A.
    Resistance K.A.
    Winding resistance K.A.
    Nominal current at 3/4 charge 5.1 A
    Nominal current at 1/2 charge 4.1 A
    Size of the operating capacitor K.A.
    Heat class (IEC 85) F
    Installation
    Environmental temperature K.A.
    Max. Operating pressure 6 bar
    Size of the suction port K.A.
    Size of the pressure port DN 65
    Name print PN 10
    Maximum installation depth 10 m
    Dry / wet setup SUBMERGED
    Automatic clutch foot manifold 96090992
    Standing foot K.A.
    Size of construction A
    Technical data
    Maximum flow rate 10.3 l/s
    Maximum discharge head 6.5 m
    Wheel type SUPER VORTEX
    Maximum grain size 65 mm
    Approvals K.A.
    Designated speed 2870 1/min
    Slip ring seal SIC/SIC
    Certification mark on the nameplate LGA
    characteristic tolerance ISO9906:2012 3B2
    Cooling jacket Without cooling jacket
    Cargo. Media temperature range K.A.
    Materials Pump housing Grey cast iron
    Pump casing K.A.
    Impeller material Grey cast iron
    Impeller EN-GJS-400-15
    Wheel material according to ASTM K.A.
    Motor EN-GJL-200
    Secondary shaft seal K.A.
    Type of control. Moisture sensor Without humidity sensor
    Control cabinet not built-in
    Water-in-oil sensor without leakage sensor
    Others Net weight 50.8 kg
    Gross weight K.A.
    Shipping vol. K.A.
    Country of origin HU
    Tariff No. 84137021
    Sales region K.A.
    Fine LVI No. K.A.
    Swedish RSK No. 5885973
    Norwegian NRF No. K.A.
