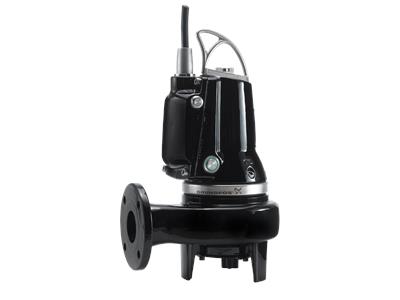

Grundfos SL1.50.65.09.E.EX.2.50B wastewater pump 96878453
Max. delivery head: 11.6 m | Max. flow rate: 16.1 l/s | Max. operating pressure: 6 bar | Rated current: 6.1 A | Rated speed: 2920 rpm Operating pressure: 6 bar | Rated current: 2.8-2.8 A | Rated speed: 2920 1/min
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 96878453 Sewage pump SL1.50.65.09.E.EX.2.50B
Product Number: 96878453
EAN Number: 5700312550310
Sewage pumps (1.1 to 11 kW) with S-tube impeller. Depending on the size, the free passage is 50 to 100 mm. Non-self-priming, single-stage submersible pump for pumping wastewater, service water and untreated raw sewage. The pump is designed for wet installation in intermittent or continuous operation. With S-tube® impeller with a free ball passage of 50 mm. For wastewater with a dry matter content of up to 3 %. With service-friendly stainless steel clamping band for quick separation of motor and hydraulics. No special tools required. Pipe connection via DIN flange. The pump is explosion-proof designed.
Accessories
No installation kit |
Tech. Details
| Product information | ||
| Product Information | type | Sewage pump |
| Product number |
96878453 | |
| Product Name |
SL1.50.65.09.E.EX.2.50B | |
| EAN number |
5700312550310 | |
| Electrical data |
Power input P1 | 1.4 kW |
| Motor rated power P2 | 0.9 kW | |
| Net frequency | 50 Hz | |
| Designated stress | 3 x 400-415 V | |
| Voltage tolerance | +6/-10 % | |
| Max starts per hour | 30 | |
| rated current | 2.8-2.8 A | |
| Maximum power consumption | K.A. | |
| Current at no load | 1.9 A | |
| Motor efficiency at full load | 0.65 | |
| Motor efficiency at 3/4 load | 0.61 | |
| Motor efficiency at half load | 0.58 | |
| Motorpole | 2 | |
| Switch-on type | Direct | |
| Protection class (according to IEC 34-5) | IP68 | |
| Isolation class (IEC 85) | K.A. | |
| Explosion-proof | Yes | |
| Cable length | 10 m | |
| cable type | LYNIFLEX | |
| Cable size | K.A. | |
| Resistance | K.A. | |
| Winding resistor | K.A. | |
| Nominal current at 3/4 charge | 2.5 A | |
| Nominal current at 1/2 charge | 2.1 A | |
| Size of the operating capacitor | K.A. | |
| Heat class (IEC 85) | F | |
| Installation |
ambient temperature | K.A. |
| Max. Working pressure | 6 bar | |
| Size of the suction port | K.A. | |
| Size of the pressure port | DN 65 | |
| Name printing | PN 10 | |
| Maximum installation depth | 10 m | |
| Dry / wet setup | SUBMERGED | |
| Automatic clutch foot manifold | 96090992 | |
| Standing foot | K.A. | |
| Size of construction | A | |
| Technical data |
Maximum flow | 16.1 l/s |
| Maximum discharge head | 11.6 m | |
| Wheel type | One channel | |
| Maximum grain size | 50 mm | |
| Approvals | K.A. | |
| Design speed | 2920 1/min | |
| Slip ring seal | SIC/SIC | |
| Test number plate | CE 0344 | |
| characteristic tolerance | ISO9906:2012 3B2 | |
| Cooling jacket | Without cooling jacket | |
| Funding medium. | Media temperature range | K.A. |
| Materials | Pump housing | Grey cast iron |
| Pump casing | K.A. | |
| Impeller material | Gray cast iron | |
| impeller | EN-GJS-500-7 | |
| Wheel material according to ASTM | K.A. | |
| engine | EN-GJL-200 | |
| Secondary shaft seal | K.A. | |
| Type of control. | Moisture sensor | Without humidity sensor |
| Control panel | Not integrated | |
| Water-in-oil sensor | without leakage sensor | |
| Others | Net weight | 59.3 kg |
| Gross Weight | K.A. | |
| Shipping vol. | K.A. | |
| Country of origin | HU | |
| Tariff No. | 84137021 | |
| Sales region | K.A. | |
| Fine LVI No. | K.A. | |
| Swedish RSK No. | K.A. | |
| Norwegian NRF No. | K.A. | |
