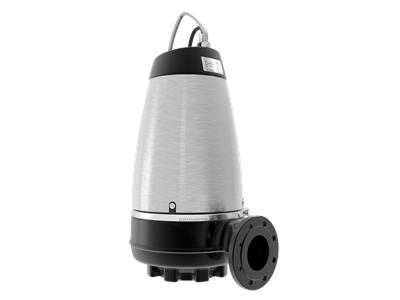

Grundfos SEV.80.100.11.A.EX.4.50D wastewater pump 96780734
Max. delivery head: 6.6 m | Max. operating pressure: 6 bar | Media temperature range: 0 ... 40 °C Operating pressure: 6 bar | Media temperature range: 0 ... 40 °C | Starting current: 13 A | Rated speed: 1440 1/min
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 96780734 Dirty water pump SEV.80.100.11.A.EX.4.50D
Product number: 96780734
EAN Number: 5700310145914
Dirty water pumps (1.1 to 11 kW) with SuperVortex vortex impeller. Depending on the size, the free passage is 50 to 100 mm. Non-self-priming, single-stage submersible pump for pumping sewage, service water and untreated raw sewage. The pump is suitable for both intermittent and continuous operation. Thanks to the maintenance-free cooling system, which does not require any cooling liquid, it is equally suitable for wet and dry installation. With efficiency-optimised SuperVortex vortex impeller with a free ball passage of 80 mm. For waste water with a dry matter content of up to 5 %. With service-friendly stainless steel clamping band for quick separation of motor and hydraulics. No special tools required. Pipe connection via DIN flange. The pump is explosion-proof.
Accessories
No installation kit |
Tech. Details
| Product information | ||
| Product information. | type | Dirty water pump |
| Product number |
96780734 | |
| Product name |
SEV.80.100.11.A.EX.4.50D | |
| EAN number |
5700310145914 | |
| Electrical data |
Power consumption P1 | 1.5 kW |
| Net frequency | 50 Hz | |
| Dimensioning voltage | 3 x 380-415 V | |
| Voltage tolerance | +6/-10 % | |
| Max starts per hour | 20 | |
| Designated current | 2.8-2.9 A | |
| Maximum power consumption | K.A. | |
| Start-up current | 13 A | |
| Current at idle | 1.9 A | |
| Motor efficiency at full load | 73.2 % | |
| Motor efficiency at 3/4 load | 71.2 % | |
| motor efficiency at half load | 65.6 % | |
| Motorpole | 4 | |
| Power-on | Direct | |
| Isolation class (IEC 85) | K.A. | |
| Explosion-proof | Yes | |
| Cable length | 10 m | |
| Cable type | LYNIFLEX | |
| Cable size | K.A. | |
| Resistance | K.A. | |
| Winding resistance | K.A. | |
| Cos phi at zero load | 0.17 | |
| cos phi 1/1 | 0.73 | |
| cos phi 1/2 | 0.52 | |
| cos phi 3/4 | 0.64 | |
| Engine rated power P2 | 1.1 kW | |
| Nominal current at 3/4 charge | 2.4 A | |
| Nominal current at 1/2 charge | 2.1 A | |
| Start-up moment | 15 Nm | |
| Cranking torque of the engine | 21 Nm | |
| Moment of inertia | 0.0142 kg m² | |
| Heat class (IEC 85) | F | |
| Temperature protection | Internal | |
| Type of cable plug | No plug | |
| size of the operating capacitor | K.A. | |
| The size of the starting capacitor | K.A. | |
| Installation |
ambient temperature | K.A. |
| Max. Operating pressure | 6 bar | |
| Connection | DIN | |
| Size of suction nozzle | K.A. | |
| Size of pressure port | K.A. | |
| Nominal printing | PN 10 | |
| Maximum installation depth | K.A. | |
| Size | K.A. | |
| Pressure port connection | DN 100 | |
| Maximum built-in depth | 20 m | |
| Maximum ambient temperature | 40 °C | |
| Explosion protection standard | K.A. | |
| Technical data |
Maximum flow rate | 16.4 l/s |
| Maximum head | 6.6 m | |
| Wheel type | SUPER VORTEX | |
| Maximum grain size | 80 mm | |
| Approvals | K.A. | |
| Cooling jacket (Yes/No) | K.A. | |
| Dimensioning speed | 1440 1/min | |
| Sliding ring seal | SIC/SIC | |
| maximum hydraulic efficiency | 0.36 | |
| Characteristic tolerance | ISO9906:2012 3B2 | |
| Cooling jacket | With cooling jacket | |
| Supply medium. | Media temperature range | 0 ... 40 °C |
| Materials | Impeller material | Grey cast iron |
| Wheels | EN 5.1301 EN-GJL-200 | |
| Wheel material according to ASTM | K.A. | |
| engine | K.A. | |
| Type of control. | Temperature sensor | Y |
| Others | Net weight | 110 kg |
| Gross weight | 122 kg | |
| Shipping vol. | K.A. | |
| Country of origin | HU | |
| Tariff No. | K.A. | |
| Sales region | K.A. | |
| Danish VVS No. | 391288536 | |
| Fine LVI No. | K.A. | |
| Norwegian NRF No. | K.A. | |
