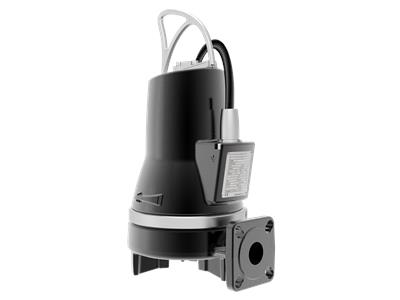

Grundfos SEG.40.12.2.50B Submersible cutter pump 96075905

    2,876.89 € 2,876.89 € 2876.89 EUR

    2,876.89 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Max. delivery head: 20.7 m | Max. operating pressure: 6 bar | Media temperature range: 0 ... 40 °C Operating pressure: 6 bar | Media temperature range: 0 ... 40 °C | Starting current: 21 A | Rated speed: 2750 1/min


    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos 96075905 Submersible cutter pump SEG.40.12.2.50B

    Product number: 96075905

    EAN Number: 5700394850780


    Cutter submersible pumps (0.9 to 4 kW) for pumping sewage containing faecal matter and water containing sludge. The SEG cutter pumps from Grundfos are non-self-priming, single-stage submersible pumps with a horizontal discharge nozzle specially designed for draining wastewater containing faecal matter. The pump is equipped with a blockage-proof, hardened cutter that shreds the solids carried in the sewage and is thus suitable for pressure drainage via pipes with a relatively small cross-section. The cutter pumps of the SEG type are ideally suited for use in sparsely populated areas where there are no gravity systems. Examples include villages, farms and areas with large differences in altitude where a pressure system is advantageous.

    Accessories


    No installation set

    Tech. Details

    Product information
    Product information.TypeCutter submersible pump
    Product number
    96075905
    Product name
    SEG.40.12.2.50B
    EAN number
    5700394850780
    Electrical data
    Power consumption P1 1.6 kW
    Network frequency 50 Hz
    Dimensioning voltage 3 x 400-415 V
    Voltage tolerance +6/-10 %
    Max starts per hour 30
    rated current 0.125
    Maximum power consumption K.A.
    Start-up current 21 A
    Current at idle 2.1 A
    Efficiency of the engine at full load 0.73
    Motor efficiency at 3/4 load 0.71
    motor efficiency at half load 0.66
    Motorpole 2
    Cutting mode Direct
    Insulation class (IEC 85) K.A.
    Explosion-protected no
    Cable length 10 m
    Cable type 07RN8-F
    Cable size K.A.
    Resistor K.A.
    Winding resistance K.A.
    Cos phi at zero load K.A.
    cos phi 1/1 0.81
    cos phi 1/2 0.58
    cos phi 3/4 0.72
    Engine rated power P2 1.2 kW
    Nominal current at 3/4 charge K.A.
    Nominal current at 1/2 charge K.A.
    Start-up moment K.A.
    Torque of the motor K.A.
    Torque of inertia 0.0038 kg m²
    Heat class (IEC 85) F
    Temperature protection external
    Type of cable plug No plug
    size of the operating capacitor K.A.
    The size of the starting capacitor K.A.
    Installation
    Environmental temperature K.A.
    Max. Operating pressure 6 bar
    Connection DIN
    Size of suction nozzle K.A.
    Size of the pressure port K.A.
    Name printing PN 10
    Maximum installation depth K.A.
    Size K.A.
    Pressure port connection DN 40
    Maximum mounting depth 10 m
    Maximum ambient temperature 40 °C
    Explosion protection standard K.A.
    Technical data
    Maximum flow rate 5 l/s
    Maximum head 20.7 m
    Type of impeller Cutting unit
    Maximum grain size K.A.
    Approvals K.A.
    Cooling jacket (Yes/No) K.A.
    Bauging speed 2750 rpm
    Motion seal SIC/SIC
    Maximum hydraulic efficiency K.A.
    characteristic tolerance ISO9906:2012 3B2
    Cooling jacket K.A.
    Supporting medium. Media temperature range 0 ... 40 °C
    Materials Impeller material K.A.
    Impeller Grey cast iron
    Wheel material according to ASTM K.A.
    engine K.A.
    Type of control Temperature sensor K.A.
    Others Net weight 42.5 kg
    Gross weight K.A.
    Shipping vol. K.A.
    Country of origin HU
    Tariff No. 84137021
    Sales region K.A.
    Danish VVS No. 391342131
    Fine LVI No. 4836103
    Norwegian NRF No. 9045801
