  3. Grundfos CMBE TWIN 3-93 I-U-C-D-A high-efficiency booster set 99220845
Public Pricelist

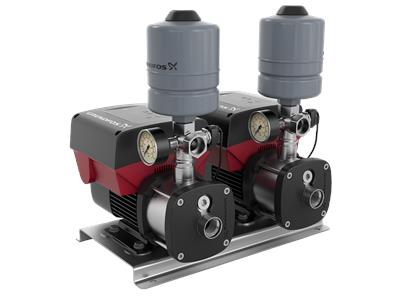

Grundfos CMBE TWIN 3-93 I-U-C-D-A high-efficiency booster set 99220845

    7,590.33 € 7,590.33 € 7590.33 EUR

    7,590.33 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Nominal delivery head: 66.3 m | Max. Operating pressure: N/A | Media temperature range: 0 ... 60 °C | Nominal power - P2: N/A | Nominal flow rate: 4.2 m³/h

    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos 99220845 high-efficiency booster set CMBE TWIN 3-93 I-U-C-C-D-A

    Product number: 99220845

    EAN number: 5712608934230


    The CMBE TWIN is a highly efficient pressure boosting system consisting of two Grundfos CMBE booster sets connected in parallel, suitable for drinking water supply and pressure boosting in domestic and commercial installations

    Accessories


    No installation kit

    Tech. Details

    Product information
    Product InformationTypeHigh-efficiency pressure boosting system
    Product number
    		 99220845
    Product name
    		 CMBE TWIN 3-93 I-U-C-C-D-A
    EAN number
    		 5712608934230
    Electrical data
    		 Std. engine K.A.
    Size of construction K.A.
    Nominal output - P2 K.A.
    Net frequency 50 / 60 Hz
    Suitable for 50/60 Hz K.A.
    Designated voltage 1 x 200-240 V
    Operating factor K.A.
    rated current K.A.
    Start-up current K.A.
    Nominal speed, 50 Hz K.A.
    Protection class (according to IEC 34-5) IP55
    Insulation class (IEC 85) K.A.
    Engine protection K.A.
    With cable (yes/no) K.A.
    Installation
    		 Environmental temperature K.A.
    Max. Operating pressure 820K.A.
    Max. Pressure at given temperature 820K.A.
    Port type 820K.A.
    Size of the suction nozzle 820K.A.
    Size of the pressure port 820K.A.
    Code connection type 820K.A.
    Technical data
    		 Pump speed 2900 1/min
    Nominal electricity 4.2 m³/h
    Nominal head 66.3 m
    No. of impellers 1
    GLRD Code AVBV
    Registrations CE,EAC,CURUS
    Drinking water approvals ACS,NSF61
    Code execution A
    Code Model K.A.
    Type of control. Frequency inverter K.A.
    Materials Pump housing Non-corroding steel
    Pump casing K.A.
    Wheel material K.A.
    Impeller Stainless steel
    Wheel material in accordance with ASTM K.A.
    Code Material K.A.
    Supported medium. Media temperature range 0 ... 60 °C
    Media temperature during operation 20 °C
    Density 998.2 kg/m³
    Others Position of the terminal box K.A.
    Minimum Efficiency Index MEI ≥ K.A.
    Net weight 44.9 kg
    Gross weight 52.9 kg
    Country of origin EN
    Tariff No. 84137075

    Properties



    The Grundfos CMBE TWIN Boosters are compact booster sets consisting of two pumps for water supply in domestic and commercial applications. The integrated speed control enables a constant pressure to be maintained in the pipes. A pressure sensor detects changes in water consumption and sends a signal to the speed controller to adjust the motor speed accordingly. In this way, and with the help of a cascade control in which the pumps are switched on and off as needed, the output is automatically adjusted to the actual consumption.
