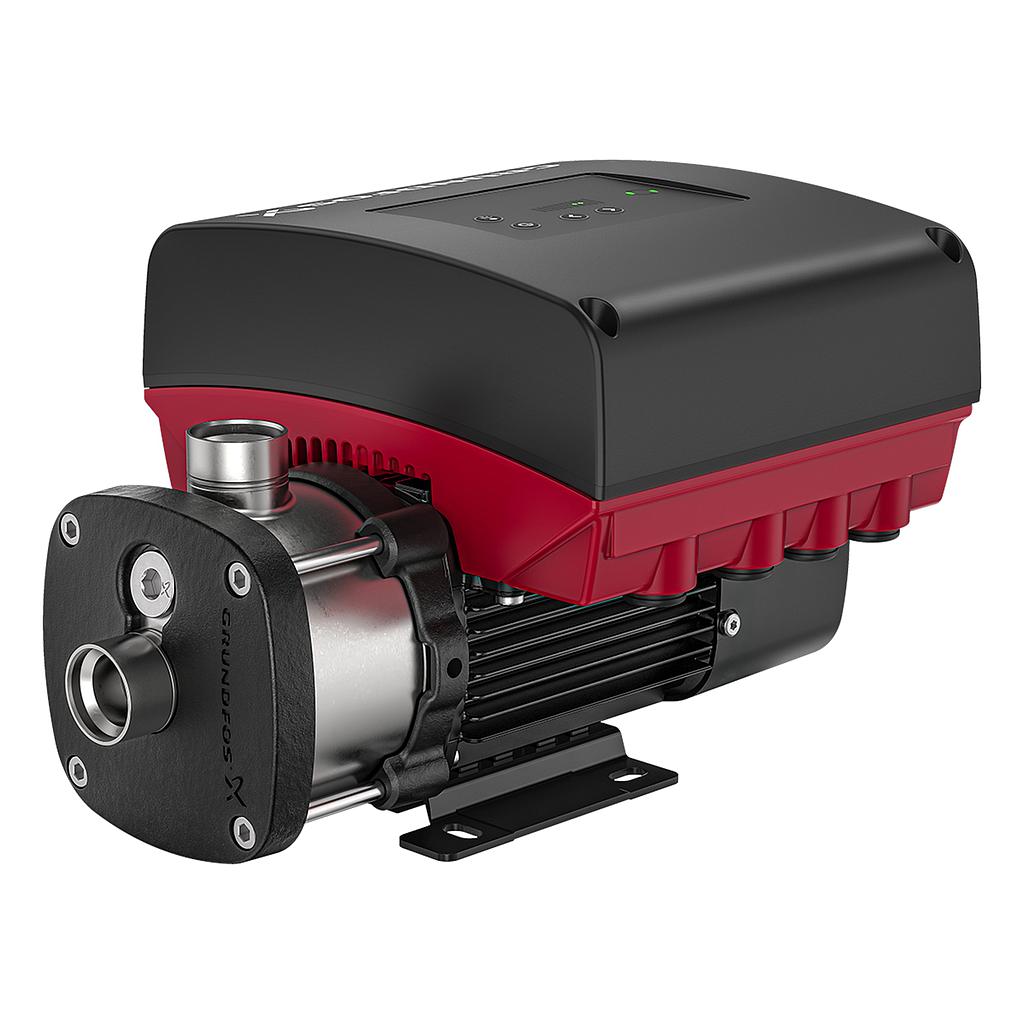

Grundfos CME 1-4 A-S-I-E-AQQE T-A-D-N compact horizontal suction pump 98394902

    2,519.39 € 2,519.39 € 2519.39 EUR

    2,519.39 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Nominal delivery head: 36.19 m | Max. Operating pressure: 16 bar | Media temperature range: -20 ... 120 °C | Nominal power - P2: 0.55 kW | Nominal flow rate: 2.04 m³/h


    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos 98394902 compact horizontal suction pump CME 1-4 A-S-I-E-AQQE T-A-D-N

    Product number: 98394902

    EAN Number: 5711494280278


    The CME is a reliable, quiet and compact horizontal suction pump with integrated frequency converter and intelligent functions. Thanks to the modular pump design, customised solutions can be easily implemented.

    Accessories


    No installation set

    Tech. Details

    Product information
    Product InformationTypeCompact horizontal suction pump
    Product number
    98394902
    Product name
    CME 1-4 A-S-I-E-AQQE T-A-D-N
    EAN number
    5711494280278
    Electrical data
    Std. engine NEMA
    Size 71A
    Nominal power - P2 0.55 kW
    Net frequency 50 / 60 Hz
    Suitable for 50/60 Hz Yes
    Dimensioning voltage K.A.
    Operating factor 45658
    rated current 1.35 A
    Start-up current K.A.
    Nominal speed, 50 Hz K.A.
    Protection class (according to IEC 34-5) IP55
    Insulation class (IEC 85) F
    Engine protection K.A.
    With cable (yes/no) K.A.
    Installation
    Environmental temperature -20 ... 55 °C
    Max. Operating pressure 8516 bar
    Max. Pressure at given temperature 8516 bar / 90 °C
    Connection type 85NPT(F)
    Size of the suction nozzle 851 inches
    Size of the pressure port 851 inches
    Code connection type 85S
    Technical data
    Pump speed 2900 rpm
    Nominal electricity 2.04 m³/h
    Rated head 36.19 m
    No. of impellers 4
    GLRD Code AQQE
    Approvals CE,EAC,CURUS
    Drinking water approvals WRAS,ACS,NSF61,UBA
    Code execution A
    Code Model A
    Type of control. Frequency inverter integrated
    Materials Pump housing stainless steel
    Pump jacket EN 1.4301
    Wheel material stainless steel
    Wheels EN 1.4301
    Impeller material according to ASTM AISI 304
    code material I
    Promoting medium. Media temperature range -20 ... 120 °C
    Media temperature during operation 20 °C
    Density 998.2 kg/m³
    Others Position of the terminal box 12 o'clock
    Minimum Efficiency Index MEI ≥ 0.68
    Net weight 16.5 kg
    Gross weight 18.2 kg
    Country of origin HU
    Tariff No. 84137075

    Properties



    Compact, reliable, horizontal, multi-stage, normal-priming centrifugal pump with axial suction and discharge. The wetted parts of the pump are made of stainless steel. The mechanical seal is a specially designed, non-relieved O-ring seal. Pipe connection via NPT female pipe thread. The pump is equipped with a 3-phase, fan-cooled permanent magnet synchronous motor. The motor efficiency corresponds to energy efficiency class IE5 in accordance with IEC 60034-30-2.
