  3. Grundfos CMBE 3-93 I-U-C-C-G-A compact horizontal suction pump 98563722
Public Pricelist

Grundfos CMBE 3-93 I-U-C-C-G-A compact horizontal suction pump 98563722

    3,664.55 € 3,664.55 € 3664.55 EUR

    3,664.55 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Nominal delivery head: 66.3 m | Max. Operating pressure: N/A | Media temperature range: 0 ... 60 °C | Nominal power - P2: N/A | Nominal flow rate: 4.2 m³/h

    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

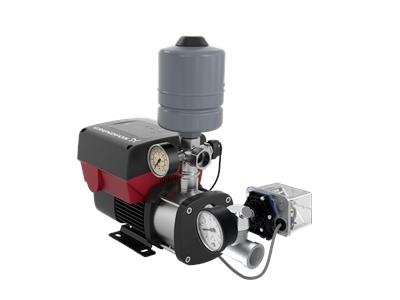

    Grundfos 98563722 compact horizontal suction pump CMBE 3-93 I-U-C-C-G-A

    Product number: 98563722

    EAN number: 5711497247636


    CMBE is a highly efficient, compact pressure boosting system suitable for drinking water supply and pressure boosting in domestic and commercial installations. The pressure is kept constant via the integrated speed control.

    Accessories


    No installation set

    Tech. Details

    Product information
    Product InformationTypeCompact horizontal suction pump
    Product number
    		 98563722
    Product name
    		 CMBE 3-93 I-U-C-C-G-A
    EAN number
    		 5711497247636
    Electrical data
    		 Std. engine K.A.
    Size of construction K.A.
    Nominal power - P2 K.A.
    Net frequency 50 / 60 Hz
    Suitable for 50/60 Hz K.A.
    Designated voltage 1 x 200-240 V
    Operating Factor K.A.
    rated current K.A.
    Start-up current K.A.
    Nominal speed, 50 Hz K.A.
    Protection class (according to IEC 34-5) IP55
    Insulation class (IEC 85) K.A.
    Engine protection K.A.
    With cable (yes/no) K.A.
    Installation
    		 Environmental temperature K.A.
    Max. Operating pressure 33K.A.
    Max. Pressure at given temperature 33K.A.
    Connection type 33K.A.
    Size of the suction nozzle 33K.A.
    Size of the pressure port 33K.A.
    Code connection type 33K.A.
    Technical data
    		 Pump speed 2900 1/min
    Nominal flow rate 4.2 m³/h
    Rated head 66.3 m
    No. of impellers 14
    GLRD Code AQQV
    Approvals CE,EAC
    Drinking water approvals WRAS,ACS,NSF61,UBA
    Code execution K.A.
    Code Model K.A.
    Type of control. Frequency inverter K.A.
    Materials Pump housing Non-corroding steel
    Pump casing K.A.
    Wheel material K.A.
    Impeller Stainless steel
    Impeller material according to ASTM K.A.
    Code Material K.A.
    Supported medium. Media temperature range 0 ... 60 °C
    Media temperature during operation 20 °C
    Density 998.2 kg/m³
    Others Position of the terminal box K.A.
    Minimum Efficiency Index MEI ≥ K.A.
    Net weight 20.9 kg
    Gross weight 29.1 kg
    Country of origin EN
    Tariff No. 84137075

    Properties



    Compact variable speed single pump booster
