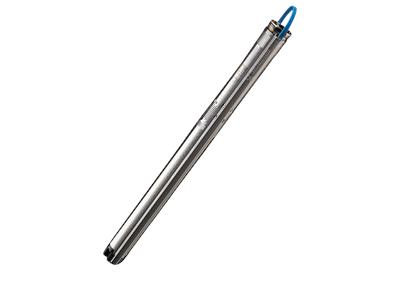

Grundfos SQ 3-80 Submersible pump 96524446
Pump: Stainless steel | Minimum well diameter: 76 mm | Rated current: 11.2 A | Nominal head: 84 m | Max. operating pressure: 15 bar | Media temperature range: 0 ... 35 °C Operating pressure: 15 bar | Media temperature range: 0 ... 35 °C
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 96524446 Submersible pump SQ 3-80
Product number: 96524446
EAN Number: 5700396930077
Multi-stage 3" submersible pump, suitable for domestic water supply for filling containers for irrigation for groundwater lowering for environmental protection applications.
Accessories
No installation kit |
Tech. Details
| Product information | ||
| Product Information | Type | Submersible Pump |
| Product number |
96524446 | |
| Product Name |
SQ 3-80 | |
| EAN number |
5700396930077 | |
| Electrical data |
Engine type | MS3 |
| Power input P1 | 2.05 kW | |
| Dimensioning voltage ac | C.A. | |
| Designated voltage dc | C.A. | |
| Designated current | 11.2 A | |
| Power factor | 1.00 | |
| Nominal speed | 10700 1/min | |
| Power-on | Direct | |
| Protection class (according to IEC 34-5) | IP68 | |
| Heat class (IEC 85) | F | |
| Integrated motor protection | Yes | |
| Temperature protection | Internal | |
| Cable length | 50 m | |
| Motor - Product Number | 96160852 | |
| Udc | C.A. | |
| Motor rated power P2 | 1.55 kW | |
| Performance P3 | 1.31 kW | |
| Net frequency | 50 Hz | |
| Designated voltage | 1 x 200-240 V | |
| Installation |
Maximum ambient pressure | C.A. |
| Connection discharge nozzle | 71Rp1 1/4 | |
| Minimal well diameter | 7176 mm | |
| Max. Operating pressure | 7115 bar | |
| Media temperature range | 710 ... 35 °C | |
| Technical specifications |
Number of levels | C.A. |
| Approvals | CE,PCBC,RCM,EAC,CN Rohs Exempt,Morocco,UKCA,SEPRO | |
| Product number pump or motor | 96080408 | |
| Backlash | with check valve | |
| Zinc Anodes | C.A. | |
| Pump speed on which the pump data is based | 10700 1/min | |
| rated current | 3 m³/h | |
| Nominal head | 84 m | |
| Code Model | B | |
| Supported media. | Max. Media temperature | 35 °C |
| Media temperature during operation |
20 °C | |
| Materials | Wheel material | Composite material |
| Motor |
Stainless steel | |
| Type of control. | Communication with the CU 300 | No communication possible |
| Stages |
6 | |
| Others | Minimum Efficiency Index, MEI ≥ | C.A. |
| Net weight | 11.6 kg | |
| Gross weight | 12.7 kg | |
| Dispatch volume | K.A. | |
| Region of sale | EU/S-AMREG/APREG | |
| Rotor | K.A. | |
| Stator | K.A. | |
| Country of origin | EN | |
| Tariff No. | 84137029 | |
Properties
The pump features floating impellers, each with its own tungsten carbide/ceramic bearing. |
The pump is driven by a 1-phase permanent magnet motor. The motor is characterised by high efficiency over a wide power range. To avoid pressure surges and high starting current, the pump is equipped with a soft start (max. 2 sec.). The pump is equipped with two eyelets for attaching the (stainless steel) rope safety device. . |
The pump is equipped with:
Soft start function |
Dry-running protection |
Protection against axial thrust reversal |
Overvoltage (> 315 V) and undervoltage |
protection (<150V) |
Overload protection |
Protection against overheating. |
