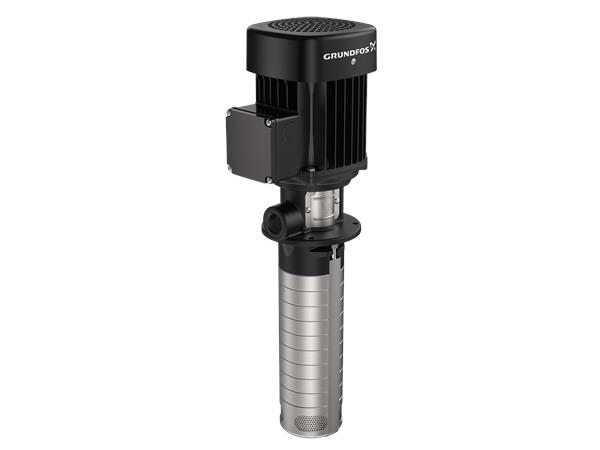

Grundfos SPK 1-3/1 A-W-A-AUUV Cooling lubricant pump 3HAH5101

    780.46 € 780.46 € 780.46 EUR

    780.46 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    EAN number: 5700391822209 | Nominal volume flow rate: 16.7 l/min | Nominal delivery head: 3.7 m | Maximum ambient temperature: 40 °C | Media temperature range: -10 ... 90 °C | Mains frequency: 50 Hz | Rated voltage: 3 x 220-240D/380-415Y V


    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos 3HAH5101 Cooling lubricant pump SPK 1-3/1 A-W-A-AUUV

    Product number: 3HAH5101

    EAN number: 5700391822209


    Normal suction, multistage centrifugal immersion pump for vertical and horizontal tank installation with 3-phase motor.

    Accessories


    No installation kit

    Tech. Details

    Product information
    Product information.Product name.SPK 1-3/1 A-W-A-AUUV
    Product number
    3HAH5101
    EAN number
    5700391822209
    Customs tariff no.
    84137075
    Country of origin
    HU
    Electrical data
    Power consumption P1.
    Network frequency 50 Hz
    Dimensioning voltage. 3 x 220-240D/380-415Y V
    Service Factor K.A.
    Designated current. 0.31/0.18 A
    Start-up current. K.A.
    nominal speed. 2800-2850 1/min.
    Efficiency of the engine at full load. K.A.
    Protection class (according to IEC 34-5) IP55
    Heat class (IEC 85) F
    Installed motor protection. none.
    Std. engine K.A.
    Construction size. K.A.
    Multiple plugs. K.A.
    IE efficiency class 50Hz. K.A.
    Rated power - P2 K.A.
    Suitable for 50/60 Hz. K.A.
    Number of phases K.A.
    Maximum current consumption K.A.
    Nominal speed, 50 Hz. K.A.
    Efficiency. K.A.
    Isolation class (IEC 85) K.A.
    Motor protection. K.A.
    Installation
    Maximum ambient temperature. 40 °C
    Connection discharge nozzle K.A.
    Installation length. K.A.
    Code for pipe connection. W
    Size of the pressure port. K.A.
    Depth of immersion. K.A.
    Max. Pressure at given temperature K.A.
    Connection type. K.A.
    Technical data
    Nominal flow rate. 16.7 l/min
    Nominal head 3.7 m
    Maximum funding K.A.
    Test mark on the type plate. K.A.
    Pump version. A
    Model. E
    Cable grommet. K.A.
    GLRD Code K.A.
    ISO acceptance class. K.A.
    number of impeller chambers. K.A.
    No. of impellers. K.A.
    Supported medium. Media temperature range. -10 ... 90 °C
    Media temperature during operation
    20 °C
    Density 998.2 kg/m³
    Materials Pump casing. K.A.
    Wheel
    Stainless steel.
    Type code for material A
    Wheel material according to ASTM. K.A.
    Pump casing. K.A.
    Type of control
    Position terminal box. K.A.
    Others Net Weight 9.5 kg
    Gross weight 10.8 kg
    Shipping volume K.A.
    Country of origin HU
    Tariff No. 84137075
    Minimum Efficiency Index MEI ≥. K.A.

    The pump has the following features:



    Installation dimensions according to EN 12157


    Wheels, intermediate chambers and multi-groove shaft made of stainless steel


    Slip ring shaft seal according to DIN 24960 (material pairing tungsten carbide/tungsten carbide)



    Power transmission through cast iron shell clutch
