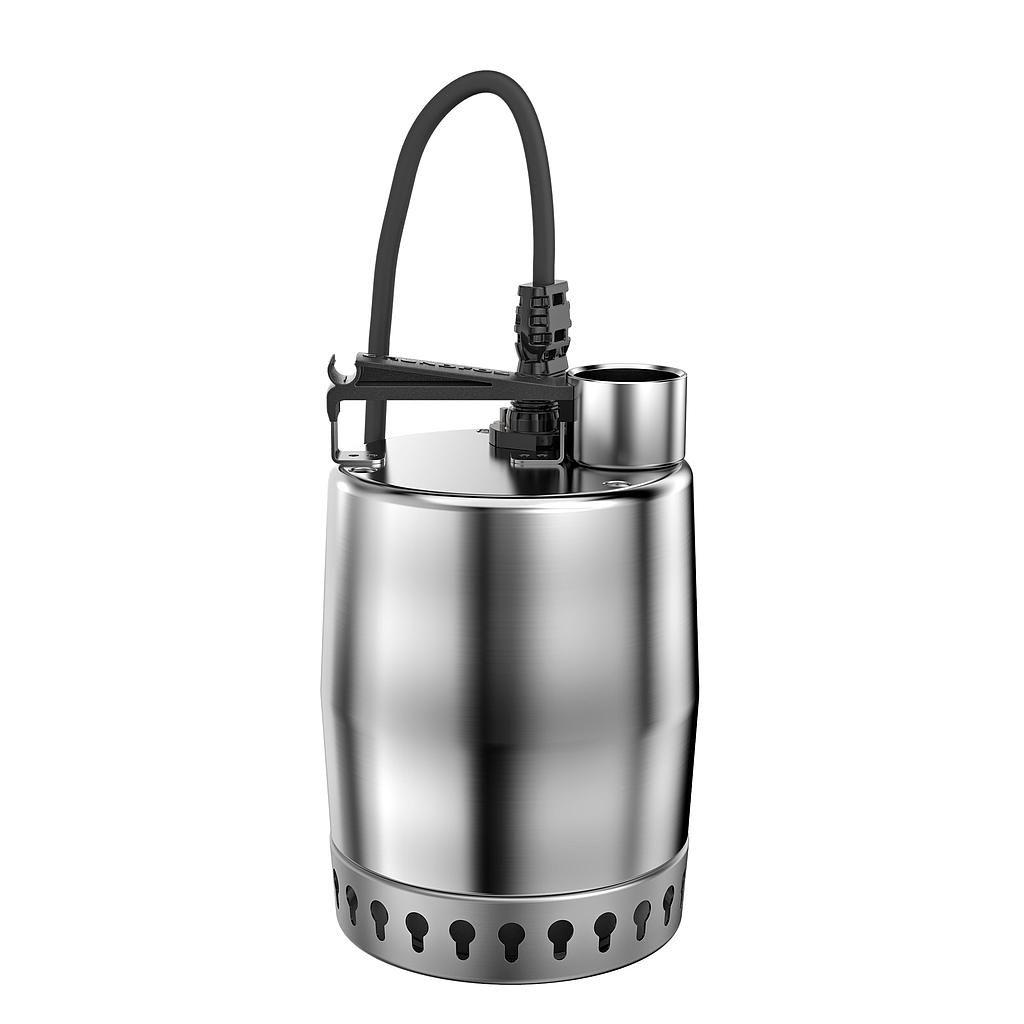

Grundfos UNILIFT KP.150.M.1 011H6000, 5700391115868 Submersible wastewater pumps
- Maximum installation depth: 2 m
- Maximum flow: 2.36 l/s
- Maximum head: 5.5 m
- Max. Particle: 10 mm
- Maximum operating pressure:
- Type of impeller:
- Power input P1:
- Rated voltage: 1 x 220-230 V
- Rated current: 1.3 A
- Mains frequency: 50 Hz
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos UNILIFT KP.150.M.1 011H6000 Submersible wastewater pumps
Product code: 011H6000
EAN Number: 5700391115868
Submersible drainage pump
Vertical single-stage stainless steel submersible pump with vertical discharge port and integrated submersible 1-phase canned motor in insulation class F with thermal overload protection.
The pump is fitted with a suction strainer, a carrying handle and is supplied with a 5 m mains cable.
The impeller is a semi-open impeller for 10 mm free passage suitable for pumping groundwater, surface water, rain water and similar liquids.
The pump has a double shaft seal consisting of two lip seals with grease in-between.
The pump has an outer casing ensuring continuous cooling of the motor by the pumped liquid. The rotor shaft operates in two maintenance-free carbon bearings cooled by the pumped liquid
The motor is filled with a non-toxic motor liquid.
| General | EAN number | 5700391115868 |
| Product No | 011H6000 | |
| Material | IMPELLER_MATR_QLTY_EN | EN 1.4301 |
| IMPELLER_MATR_QUALITY_ASTM | AISI 304 | |
| Impeller | Stainless steel | |
| PH_MATR_QUALITY_ASTM | AISI 304 | |
| PH_MATR_QUALITY_EN | EN 1.4301 | |
| Pump housing | Stainless steel | |
| Pump | Approvals | CE,VDE,LGABG,EAC,TUVRHWID,MORO,UKCA,CHROHS,SEPRO |
| Max. Particle | 10 mm | |
| Maximum flow | 2.36 l/s | |
| Maximum head | 5.5 m | |
| Model | A | |
| Rated head | 2.94 m | |
| Connect | Maximum installation depth | 2 m |
| Place of installation | Indoor | |
| Range of ambient temperature | 0 .. 50 °C | |
| Size of connection | 1 1/4 inch | |
| Type of connection | Rp | |
| Control | Level switch | M |
| Motor | Built-in motor protection | CONTACT |
| Capacitor size - run | 8 µF/400 V | |
| Enclosure class (IEC 34-5) | IP68 | |
| Insulation class (IEC 85) | F | |
| Length of power cable | 5 m | |
| Mains frequency | 50 Hz | |
| Power input - P1 | 300 W | |
| Rated current | 1.3 A | |
| Rated power - P2 | 0.15 kW | |
| Rated voltage | 1 x 220-230 V | |
| Thermal protec | internal | |
| Type of cable plug | NONE | |
| Medium | Density | 998.2 kg/m³ |
| Liquid temperature range | 0 .. 50 °C | |
| Selected liquid temperature | 20 °C | |
| Other | Environmental approvals | WEEE |
| Gross weight | 7.23 kg | |
| Herkunftsland | ||
| Net weight | 5.4 kg | |
| Shipping volume | 0.0126 m³ | |
| Zolltarif Nr. | 84137021 |
