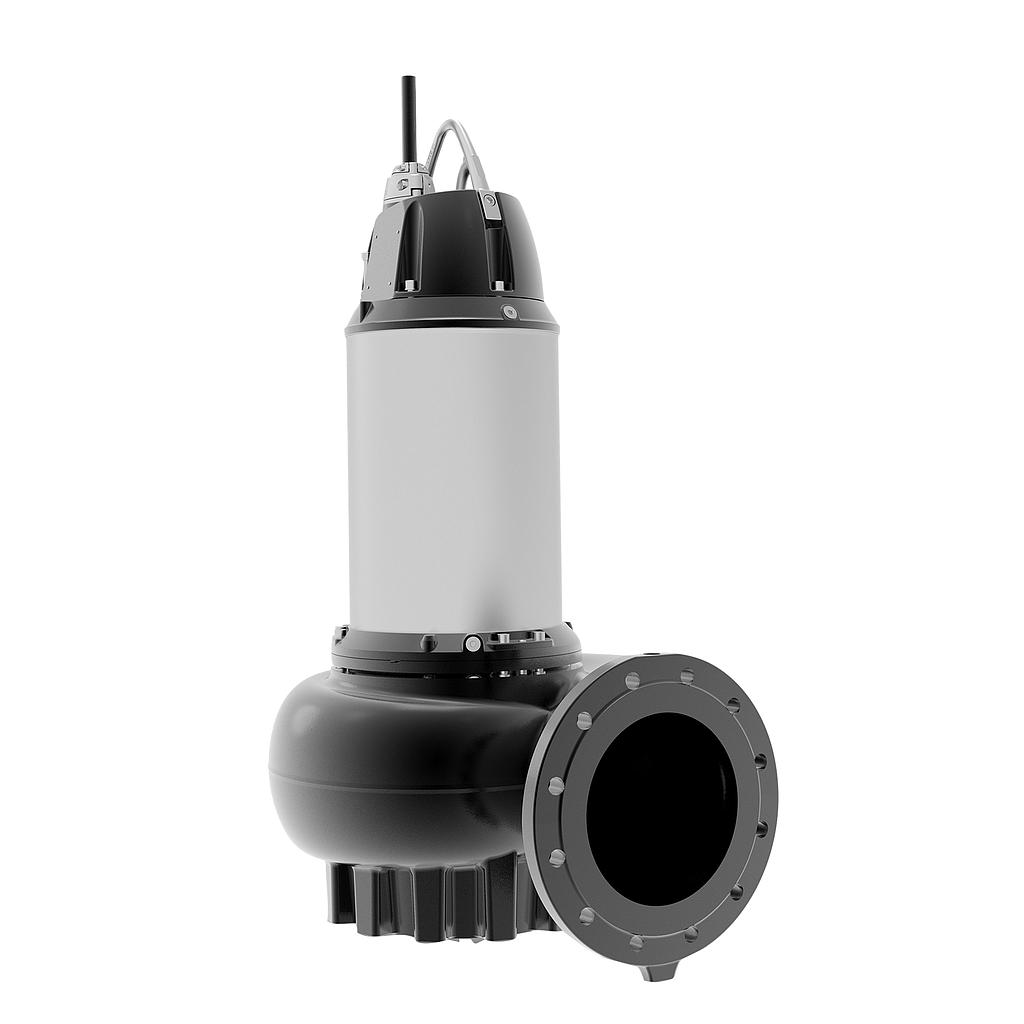

Grundfos SE2.125.300.130.6.52E.Q.N.51D.A 99777014, 5713834122118 Submersible wastewater pumps
- Maximum installation depth: 20 m
- Maximum flow: 300 l/s
- Maximum head: 8.5 m
- Max. Particle: 125 mm
- Maximum operating pressure: 8 bar
- Type of impeller: DUAL S-TUBE
- Power input P1: 15.1 kW
- Rated voltage: 3 x 380-415/660-690 V
- Rated current:
- Mains frequency: 50 Hz
=> Note: The product image is for illustration purposes only. Please use the description for identification.
Buy Profluid Shop online at low prices – for larger orders or volume discounts, please contact us for a customized quote. This offer is exclusively for commercial customers.
Grundfos SE2.125.300.130.6.52E.Q.N.51D.A 99777014 Submersible wastewater pumps
Product code: 99777014
EAN Number: 5713834122118
Non-self-priming, single-stage, centrifugal pump designed for handling wastewater, process water and unscreened raw sewage. The pump is designed for intermittent and continous operation. The cooling jacket ensures that the pump can operate submerged or dry installed. The revolutionary S-tube® impeller provides free spherical passage of solids up to 125 mm and is suitable for wastewater with a dry matter content of up to 3 %. A SmartTrim impeller clearance adjustment system makes it possible to maintain maximum performance. For installation on auto coupling, the Grundfos SmartSeal gasket system provides a leak-proof connection. The pump comes with a high efficient Grundfos motor built on IE3 motor components.
| General | EAN number | 5713834122118 |
| Product No | 99777014 | |
| Material | IMPELLER_MATR_QLTY_EN | EN 1.4408 |
| IMPELLER_MATR_QUALITY_ASTM | ASTM A351 CF8M | |
| Impeller | Stainless steel | |
| MOTOR_MATR_QUALITY_EN | EN 1561 EN-GJL-250 | |
| Motor | Cast iron | |
| PH_MATR_QUALITY_EN | EN 1561 EN-GJL-250 | |
| Pump housing | Cast iron | |
| Secondary shaft seal | SIC/CARBON | |
| Shaft seal | SIC | |
| Pump | Approvals | CE,EAC,RCM |
| Cooling jacket (Yes/No) | Y | |
| Curve tolerance | ISO9906:2012 3B | |
| Lifting height class | E | |
| Max. Particle | 125 mm | |
| Maximum flow | 300 l/s | |
| Maximum head | 8.5 m | |
| Type of impeller | DUAL S-TUBE | |
| Connect | Auto-coupling | 96255839 |
| Base stand | 92593745 | |
| Flange standard | DIN | |
| Frame range | 52 | |
| Inst dry/wet | DRY/SUBMERGED | |
| Inst horizontal | 99867474 | |
| Maximum installation depth | 20 m | |
| Maximum operating pressure | 8 bar | |
| Pressure rating | PN 10 | |
| Range of ambient temperature | -20 .. 40 °C | |
| Size of inlet connection | DN 300 | |
| Size of outlet connection | DN 300 | |
| Control | Moisture sensor | with moisture sensors |
| Motor | Built-in motor protection | KLIXON |
| Cable resistance | 4.95 mOhm/m | |
| Cable size | 7G4+5X1.5ST | |
| Cable type | S1BN8-F | |
| Cos phi 1/1 | 0.74 | |
| Cos phi 1/2 | 0.56 | |
| Cos phi 3/4 | 0.66 | |
| Enclosure class (IEC 34-5) | IP68 | |
| Explosion proof | N | |
| Insulation class (IEC 85) | H | |
| Length of power cable | 10 m | |
| Mains frequency | 50 Hz | |
| Max starts per hour | 20 | |
| Maximum current consumption | 30 A | |
| Method of start | Y/D | |
| Motor efficiency at 1/2 load | 85 % | |
| Motor efficiency at 3/4 load | 86 % | |
| Motor efficiency at full load | 86 % | |
| Number of poles | 6 | |
| Power input P1 | 15.1 kW | |
| Rated current | 31-29/18-17 A | |
| Rated current at no load | 18 A | |
| Rated power - P2 | 13 kW | |
| Rated speed | 980 1/min | |
| Rated voltage | 3 x 380-415/660-690 V | |
| Starting current | 185 A | |
| Voltage tolerance | +10/-10 % | |
| Winding resistance | 0.620 Ohm | |
| Medium | Density | 998.2 kg/m³ |
| Liquid temperature range | 10 .. 40 °C | |
| Selected liquid temperature | 20 °C | |
| Other | Gross weight | 533 kg |
| Herkunftsland | ||
| Net weight | 490 kg | |
| Shipping volume | 1.65 m³ | |
| Zolltarif Nr. | 84137021 |
