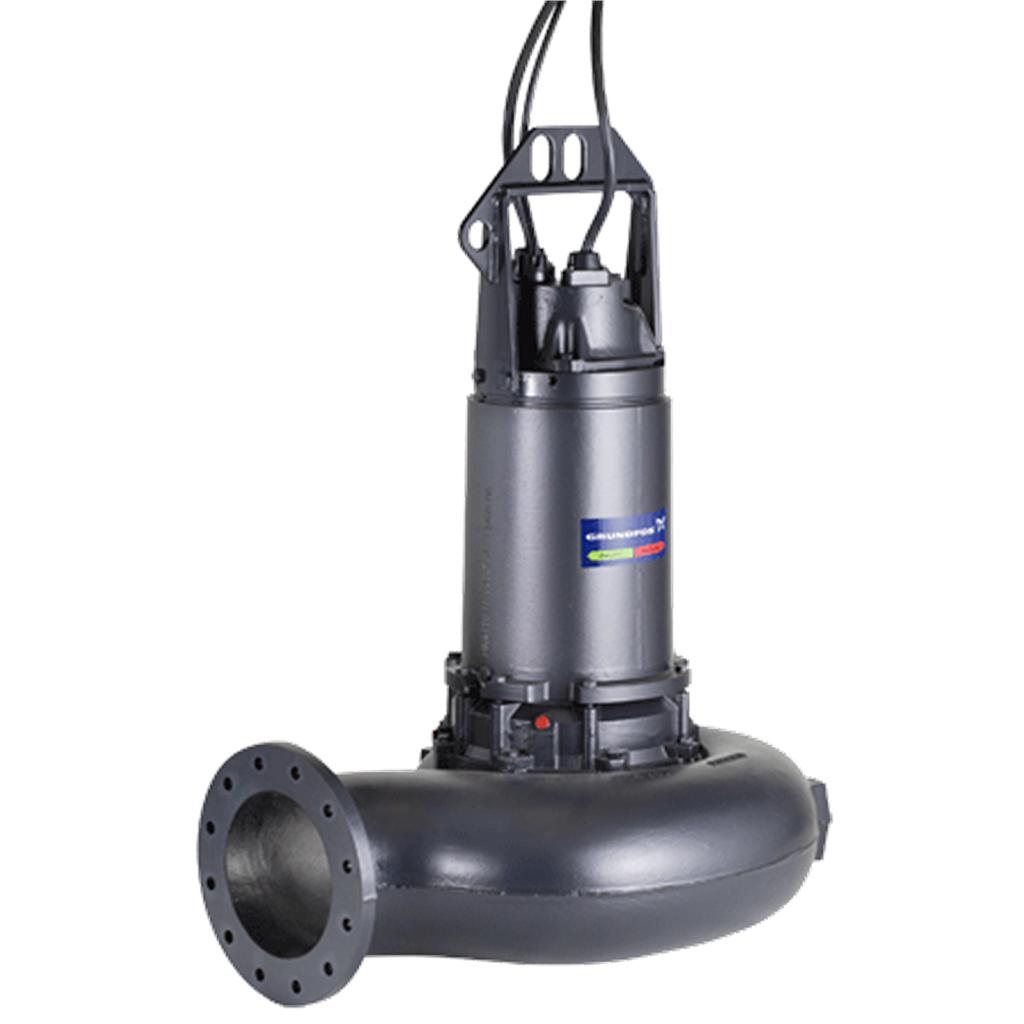

Grundfos S2.100.200.550.4.66M.C.338.G.N.D.513 96785344, 5700310249315 Submersible wastewater pumps
- Maximum installation depth: 20 m
- Maximum flow: 280 l/s
- Maximum head: 37.8 m
- Max. Particle: 100 mm
- Maximum operating pressure:
- Type of impeller: 2-CHANNEL
- Power input P1: 62 kW
- Rated voltage:
- Rated current: 111/ A
- Mains frequency: 50 Hz
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos S2.100.200.550.4.66M.C.338.G.N.D.513 96785344 Submersible wastewater pumps
Product code: 96785344
EAN Number: 5700310249315
The pump is designed for intermittent and continous operation. The cooling jacket ensures that the pump can operate submerged or dry installed without motor cooling. The two-channel impeller handles solids up to 100 mm in size. A SmartTrim impeller clearance adjustment system makes it possible to maintain maximum performance throughout the lifetime of the pump. To facilitate easy transportation as well as installation on-site, the pump is fitted with a robust lifting bracket. For installation on auto coupling, the Grundfos SmartSeal gasket system provides a leak-proof connection. Pipework connections are via a DIN flange.
| General | EAN number | 5700310249315 |
| Product No | 96785344 | |
| Material | IMPELLER_MATR_QLTY_EN | EN 1563 EN-GJS-500-7 |
| IMPELLER_MATR_QUALITY_ASTM | ASTM A536 80-55-06 | |
| Impeller | Ductile iron | |
| MOTOR_MATR_QUALITY_ASTM | A48 30 | |
| MOTOR_MATR_QUALITY_EN | EN 1561 EN-GJL-250 | |
| Motor | Cast iron | |
| PH_MATR_QUALITY_ASTM | ASTM A48-30 | |
| PH_MATR_QUALITY_EN | EN 1561 EN-GJL-250 | |
| Pump housing | Cast iron | |
| Secondary shaft seal | SIC-CARBON | |
| Shaft seal | SIC | |
| Pump | Actual impeller diameter | 332 mm |
| Approvals on nameplate | CE, EAC | |
| Cooling jacket (Yes/No) | Y | |
| Curve tolerance | ISO9906:2012 3B | |
| Lifting height class | M | |
| Max. Particle | 100 mm | |
| Maximum flow | 280 l/s | |
| Maximum head | 37.8 m | |
| Type of impeller | 2-CHANNEL | |
| Connect | Auto coupling | 96641489 |
| Inst dry/wet | D/S | |
| Maximum installation depth | 20 m | |
| Pressure rating for connection | PN 10 | |
| Range of ambient temperature | 0 .. 40 °C | |
| Size of outlet connection | DN 200 | |
| Type of connection | DIN | |
| Control | Moisture sensor | with moisture sensors |
| Water-in-oil sensor | without water-in-oil sensor | |
| Motor | Cable description | 2X4X25MM2+1X7X1,5MM2 |
| Cable resistance | 0.78 mOhm/m | |
| Cos phi 1/1 | 0.78 | |
| Cos phi 1/2 | 0.62 | |
| Cos phi 3/4 | 0.73 | |
| Enclosure class (IEC 34-5) | IP68 | |
| Ex-protection standard | N KLIXON | |
| Explosion proof | N | |
| Frame size | 66 | |
| Insulation class (IEC 85) | F | |
| Length of power cable | 10 m | |
| Mains frequency | 50 Hz | |
| Max starts per hour | 15 | |
| Maximum current consumption | 111 A | |
| Method of start | Y/D | |
| Motor efficiency at 1/2 load | 91 % | |
| Motor efficiency at 3/4 load | 93 % | |
| Motor efficiency at full load | 93 % | |
| Number of poles | 4 | |
| Power cable type | H07RN-F AT | |
| Power input P1 | 62 kW | |
| Rated current | 111/ A | |
| Rated current at no load | 51.5 A | |
| Rated power - P2 | 58 kW | |
| Rated speed | 1482 1/min | |
| Rated voltage | 3 x 415 V | |
| Starting current | 797 A | |
| Voltage tolerance | +10/-10 % | |
| Winding resistance | 0.079 Ohm | |
| Medium | Density | 998.2 kg/m³ |
| Liquid temperature range | 0 .. 40 °C | |
| Selected liquid temperature | 20 °C | |
| Other | Gross weight | 965 kg |
| Herkunftsland | ||
| Net weight | 855 kg | |
| Zolltarif Nr. | 84137021 |
