Grundfos MMS 8000 R 96539781, 5700397737002 Pump motors
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 96539781 Grundfos Pump motors MMS 8000 R
Product code: 96539781
EAN Number: 5700397737002
MMS 8000 R

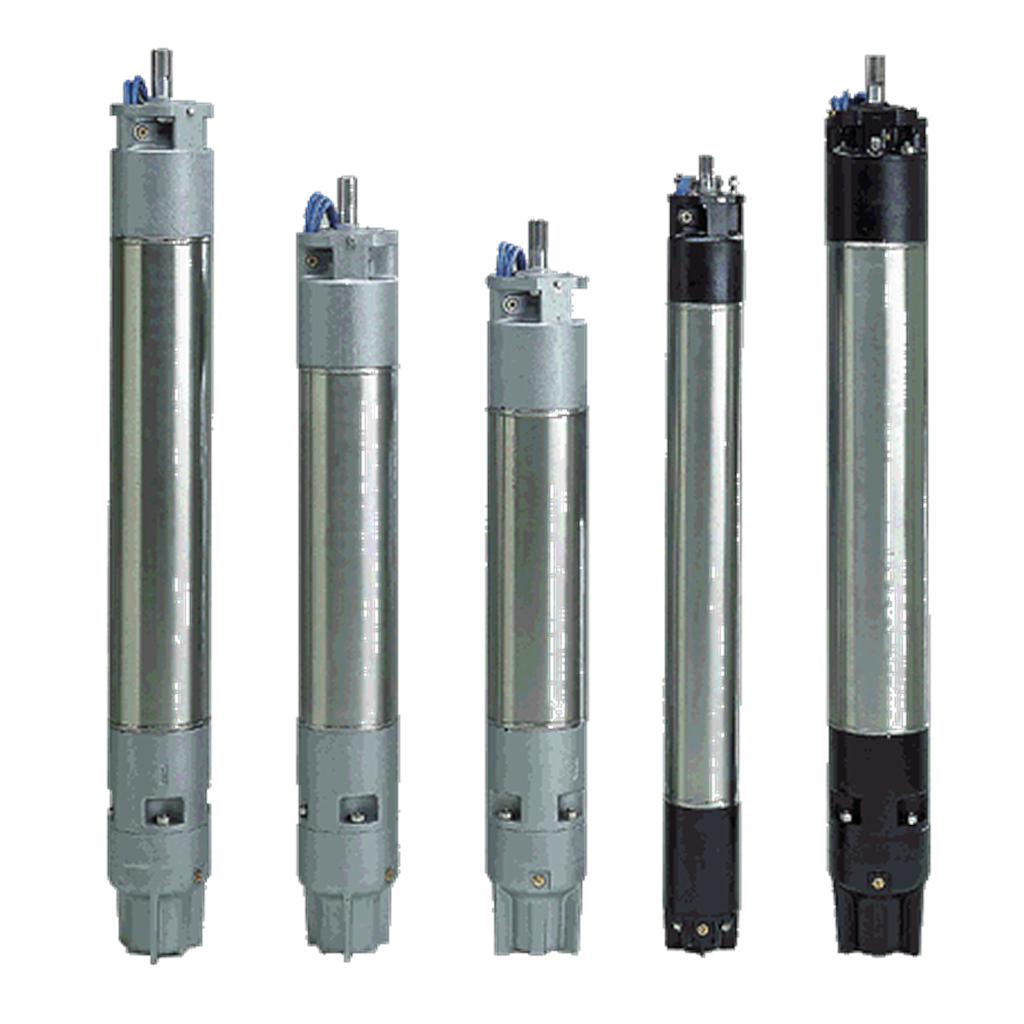

The motor is a 3-phase motor of the wet winded rewindable type with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.
The motor is a 3-phase motor of the wet winded rewindable type with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.
| General | EAN number | 5700397737002 |
| Product No | 96539781 | |
| Material | MATWNRMOT | DIN W.-Nr. 1.4539 |
| Motor | AISI 904L | |
| Motor | Stainless steel | |
| Rubber | NBR | |
| Pump | Motor version | T40 |
| Shaft seal for motor | SIC/SIC | |
| Connect | Motor diameter | 8 inch |
| Motor | Breakdown torque | 260-300-320 % |
| Built-in temp. transmitter | NO | |
| Cos phi - power factor | 0.89-0.87-0.84 | |
| Enclosure class (IEC 34-5) | IP68 | |
| Locked-rotor torque | 160-190-210 % | |
| Mains frequency | 50 Hz | |
| Max. axial load | 5000 kg | |
| Moment of inertia | 0.088 kg m² | |
| Motor efficiency at 1/2 load | 86.0-85.0 % | |
| Motor efficiency at 3/4 load | 87.0 % | |
| Motor efficiency at full load | 86.0-87.0 % | |
| Motor type | MMS8000 | |
| Rated current | 230-224-222 A | |
| Rated full-load torque | 366 Nm | |
| Rated power - P2 | 110 kW | |
| Rated speed | 2870-2890-2900 1/min | |
| Rated voltage | 3 x 380-400-415 V | |
| Start. method | direct-on-line | |
| Starting current | 520-580-600 % | |
| Voltage tolerance | +6/-10 % | |
| Winding resistance | 0.080 Ohm | |
| Windings | PE2/PA | |
| Medium | Max liquid t at 0.15 m/sec | 35 °C |
| Max liquid t at 0.5 m/sec | 40 °C | |
| Other | Herkunftsland | |
| Net weight | 333 kg | |
| Shipping volume | 0.239 m³ | |
| Zolltarif Nr. | 85015381 |
