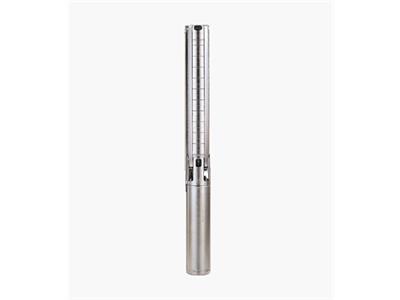

Grundfos SP 2A-90 Submersible pump in stainless steel 09301K90
Nominal volume flow rate: 2 m³/h | Rated current: 9.75-9.60-9.80 A | Max. media temperature: 40 °C Max. media temperature: 40 °C | Nominal head: 358 m | Pump speed on which the pump data are based: 2900 1/min
In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.
The offer is exclusively for professionals.
Grundfos 09301K90 stainless steel submersible pump SP 2A-90
Product Number: 09301K90
EAN number: 5700391123559
Stainless steel submersible pumps for installation in 4", 6", 8" and 10" wells for pumping groundwater with motor powers from 0.37 to 250 kW. Submersible pump for pumping clean water. For vertical or horizontal installation, e.g. in wells. All steel parts made of corrosion-resistant stainless steel 1.4301 (AISI 304). With drinking water approval. The pump is equipped with a 4 kW MS4000 motor with sand deflector, mechanical seal, water-lubricated bearing journals and volume-compensating diaphragm. Robust, efficiency-optimized submersible motor with can. Suitable for media temperatures up to 40 °C.
Accessories
No installation set |
Tech. Details
| Product information | ||
| Product information. | Type | Stainless steel submersible pump |
| Product number |
09301K90 | |
| Product Name |
SP 2A-90 | |
| EAN number |
5700391123559 | |
| Electrical data |
Motor type | MS4000 |
| Motor Usage | GRUNDDFOS | |
| Engine rated power P2 | 4 kW | |
| Power requirement (P2) of the pump | 4 kW | |
| Net frequency | 50 Hz | |
| Dimensioning voltage | 3 x 380-400-415 V | |
| Designated current | 9.75-9.60-9.80 A | |
| Startup current | 460-500-530 % | |
| Power Factor Cos phi | 0.85-0.80-0.77 | |
| nominal speed | 2850-2865-2875 1/min | |
| Protection class (according to IEC 34-5) | IP68 | |
| Heat class (IEC 85) | F | |
| Integrated motor protection | none | |
| Temperature protection | external | |
| Integrated temperature sensor | No | |
| Motor - Product number | K.A. | |
| Motor winding | Enamelled | |
| Installation |
Pressure port connection | R1 1/4 |
| Motor diameter | 4 inches | |
| Technical specifications |
Pump speed on which the pump data is based | 2900 1/min |
| Nominal flow | 2 m³/h | |
| Nominal head | 358 m | |
| Number of levels | 90 | |
| Number for impeller reduction | NONE | |
| Wave sealing of the engine | HM/CER | |
| Test mark on the nameplate | CE,EAC | |
| characteristic tolerance | ISO9906:2012 3B | |
| Model | A | |
| Backdraft flap | YES | |
| engine design | T40 | |
| Supporting medium. | Max. Media temperature | 40 °C |
| Max. Media temp. at 0.15 m/s | 40 °C | |
| Media temperature during operation | 20 °C | |
| density | 998.2 kg/m³ | |
| Materials | pump | Stainless steel |
| impeller material | Stainless steel | |
| Impeller | EN 1.4301 | |
| Impeller material according to ASTM | AISI 304 | |
| Motor | Stainless steel | |
| Others | Minimum Efficiency Index, MEI ≥ | 0.70 |
| Net weight | 63.5 kg | |
| Gross weight | 88.8 kg | |
| Shippingvol. | 0.318 m³ | |
| Country of origin | DK | |
| Tariff No. | 84137029 | |
| Danish VVS No. | K.A. | |
| Fine LVI No. | K.A. | |
| Swedish RSK No. | K.A. | |
| Norwegian NRF No. | K.A. | |
properties:
Motor without temperature sensor. A Pt1 sensor can be installed for temperature monitoring. Motor switch-on mode: direct (DOL). |
