Grundfos DDC 15-4 A-SS/T/SS-F-31AAFG 97721493, 5710622716344 Digital dosing pumps

    1,973.64 € 1,973.64 € 1973.64 EUR

    1,973.64 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart


    - Max. Flow: 15 l/h
    - Min flow: 15.0 ml/h
    - Maximum operating pressure: 4 bar
    - Turn-down ratio: 1:1000
    - Accuracy of repeatability: 1 %
    - Control variant: A
    - Dosing head: Stainless Steel 1.4435
    - Gasket: PTFE

    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos DDC 15-4 A-SS/T/SS-F-31AAFG 97721493 Digital dosing pumps

    Product code: 97721493

    EAN Number: 5710622716344

    DDC 15-4 A-SS/T/SS-F-31AAFG
    DDC 15-4 A-SS/T/SS-F-31AAFG

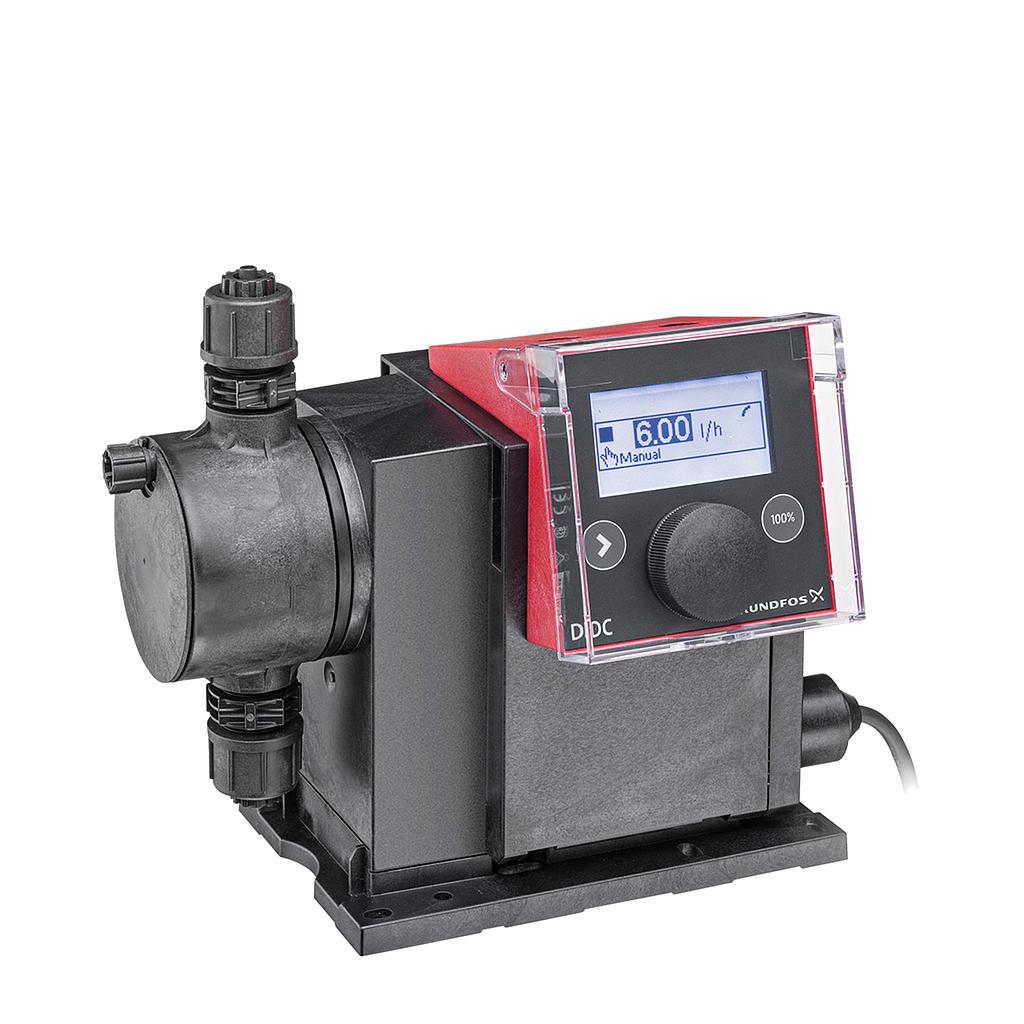

    The SMART Digital DDC is a compact positive displacement, diaphragm dosing pump with variable-speed drive (stepper motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The click-stop mounting plate allows installation in three different positions without using any additional accessories. The control cube can be turned easily into front, left or right position. The click wheel and the multi-coloured backlit graphical, plain-text LC display make commissioning and operation intuitive. The control elements are protected by a transparent cover.

    The dosing head is composed of:

    • Long lifetime and universal, chemically resistant full-PTFE diaphragm.
    • Double ball valves for highest dosing accuracy.
    • Deaeration valve for easy start-up.

    Operation modes:

    • Manual dosing in ml/h, I/h or gph.
    • Pulse control in ml/pulse (incl. memory function).
    Other features:
    • Two SlowMode steps (anti-cavitation), 50 % (maximum flow= 7.5 l/h) and 25 % (maximum flow= 3.75 l/h), e.g. for high-viscosity or degassing liquids.
    • Service information display to show when service and which wear-part order number is required.
    • Two-step key lock function to protect the pump against unauthorised access.
    • Additional display function to provide further information.
    • Counter for total dosed volume (resettable), operating hours and others.
    • Save and load customised settings as well as reload of factory settings.

    Signal inputs/outputs:

    • Input for pulse, external stop.
    • Input for low-level and empty-tank signal.

    Product information EAN number 5710622716344
    Product No 97721493
    Flow rate Accuracy of repeatability 1 %
    Approvals CE,CSA-US,NSF61,EAC,RCM
    Max. Flow 15 l/h
    Max. flow in slow mode 25% 3.75 l/h
    Max. flow in slow mode 50% 7.5 l/h
    Maximum viscosity at 100 % 300 mPas
    Maximum viscosity in slow mode 25 % 2000 mPas
    Maximum viscosity in slow mode 50 % 1300 mPas
    Min flow 15.0 ml/h
    Turn-down ratio 1:1000
    Type key DDC 15-4 A-SS/T/SS-F-31AAFG
    Valve type Standard
    Electrical data Enclosure class (IEC 34-5) IP65 / TYPE 4X
    Inrush current 25A at 230V for 2ms
    Length of cable 1.5 m
    Mains frequency 50 / 60 Hz
    Maximum power input - P1 22 W
    Rated voltage 1 x 100-240 V
    Type of cable plug EU
    Installation Installation set (Yes/No) NO
    Installation type No installation set
    Max. Suction lift during operation 6 m
    Max. Suction lift during priming 3 m
    Maximum ambient temperature 0 .. 45 °C
    Maximum operating pressure 4 bar
    Pump inlet Threaded, Rp 1/4"
    Pump outlet Threaded, Rp 1/4"
    Fluid Density 998.2 kg/m³
    Liquid temperature range 0 .. 45 °C
    Selected liquid temperature 20 °C
    Materials Dosing head Stainless Steel 1.4435
    Gasket PTFE
    Valve ball Stainless steel
    Control Control panel Front-Mounted
    Control variant A
    Ext. Stop input YES
    Level control YES
    Output relays 0
    Pulse control Y
    Other information Colour RED
    Gross weight 3 kg
    Herkunftsland
    Net weight 3 kg
    Zolltarif Nr. 84135040
