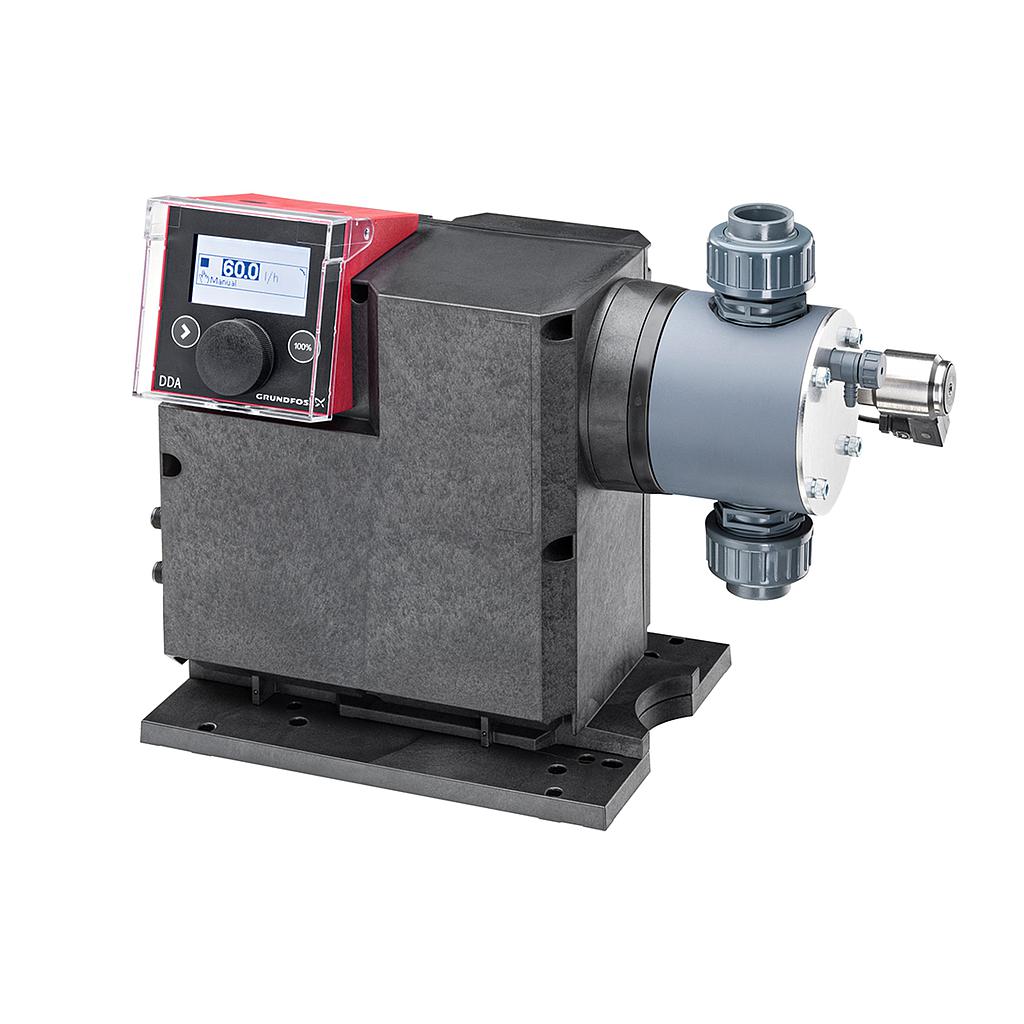

Grundfos DDA 60-10 AR-PVC-L/V/C-F-31U3U SMART Digital diaphragm metering pump 99159497

    4,279.50 € 4,279.50 € 4279.5 EUR

    4,279.50 €

    Option not available

    Diese Kombination existiert nicht.

    Add to cart

    Max. flow rate (l/h): 60 | Max. Operating pressure (bar): 10 | Pump housing: N/A | Material dosing head: PVC (polyvinyl chloride) | Valve ball: Ceramic | Media temperature range: 0 ... 40 °C

    In the profluid store simply buy online - for larger orders or scale discounts please contact us for an individual offer.

    The offer is exclusively for professionals.

    Grundfos DDA 60-10 AR-PVC-L/V/C-F-31U3U3FG 99159497 Digital dosing pumps

    Product code: 99159497

    EAN Number: 5712607842857

    DDA 60-10 AR-PVC-L/V/C-F-31U3U3FG

    The SMART Digital DDA is a compact positive displacement, diaphragm dosing pump with variable-speed drive (PMS motor) and intelligent control electronics with minimum energy consumption. The SMART Digital Dosing series operates at full stroke length to ensure optimum accuracy, priming and suction, even for high-viscosity or degassing liquids. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow. The mounting plate allows quick installation and service. The control cube can be turned easily into front, left or right position. The click wheel and the multi-coloured backlit graphical, plain-text LC display make commissioning and operation intuitive. The control elements are protected by a transparent cover.

    The dosing head is composed of:

    • Long lifetime and universal, chemically resistant full double PTFE diaphragm.
    • Ball valves for highest dosing accuracy.
    • Deaeration valve for easy startup.

    Operating modes:

    • Manual dosing in ml/h, I/h or gph.
    • Pulse control in ml/pulse (incl. memory function).
    • Analog control 0/4-20 mA (scalable).
    • Pulse-based batch function in ml, l or gal.
    • Timer-based batch function (Dosing timer, cycle or week).
    • Fieldbus control (GENIbus prepared for Grundfos CIU fieldbus modules).
    Other features:
    • Diaphragm condition monitoring with double diaphragm leakage detection.
    • Auto deaeration during pump standby to avoid breakdowns due to air-locking.
    • Two SlowMode steps (anti-cavitation), 50 % (maximum flow: 30 l/h) and 25 % (maximum flow
    • Service information display to show when service and which wear-part order number is required.
    • Two-step key lock function to protect the pump against unauthorised access.
    • Additional display function to provide further information, e.g. the actual mA input signal.
    • Counter for total dosed volume (resettable), operating hours, etc.
    • Save and load customised settings as well as reload of factory settings.

    Signal inputs/outputs:

    • Input for pulse, analog 0/4-20 mA, external stop.
    • Input for low-level and empty-tank signal.
    • Two potential-free output relays for maximum 30 V AC/DC (configurable, e.g. alarm, stroke signal, pump dosing, timer etc.)
    • Output analog 0/4-20 mA.
    • Fieldbus communication interface (GENIbus, for connecetion of the Grundfos CIU fieldbus converter).

    Product information EAN number 5712607842857
    Product No 99159497
    Flow rate Accuracy of repeatability 1.5 %
    Approvals CE,CSA-US,NSF61,EAC,RCM
    Max. Flow 60 l/h
    Max. flow in slow mode 25% 15 l/h
    Max. flow in slow mode 50% 30 l/h
    Maximum viscosity at 100 % 150 mPas
    Maximum viscosity in slow mode 25 % 3000 mPas
    Maximum viscosity in slow mode 50 % 2000 mPas
    Min flow 75 ml/h
    Turn-down ratio 1:800
    Type key DDA 60-10 AR-PVC-L/V/C-F-31U3U
    Valve type Standard
    Electrical data Enclosure class (IEC 34-5) IP65 / TYPE 4X
    Inrush current 70A at 240V (35A/100V) for 2ms
    Length of cable 1.5 m
    Mains frequency 50 / 60 Hz
    Maximum power input - P1 62 W
    Rated voltage 1 x 100-240 V
    Type of cable plug EU
    Installation Installation set (Yes/No) NO
    Installation type No installation set
    Max. Suction lift during operation 3 m
    Max. Suction lift during priming 1.5 m
    Maximum ambient temperature 0 .. 45 °C
    Maximum operating pressure 10 bar
    Pump inlet Conn.pack U3 (hose ID.19mm &..
    Pump outlet Conn.pack U3 (hose ID.19mm &..
    Fluid Density 998.2 kg/m³
    Liquid temperature range 0 .. 40 °C
    Selected liquid temperature 20 °C
    Materials Dosing head PVC (Polyvinyl chloride)
    Gasket FKM
    Valve ball Ceramic
    Control Analog input 0/4-20 MA
    Analog output 0/4-20 MA
    Bus communication YES
    Control panel Front-Mounted
    Control variant AR
    Ext. Stop input YES
    Level control YES
    Output relays 2
    Pulse control Y
    Other information Colour RED
    Gross weight 6 kg
    Herkunftsland
    Net weight 6 kg
    Zolltarif Nr. 84135040
